Tel: +44 (0) 197 825 4472Vertical CZP-3 with Chain Conveyor
High-Efficiency Log Processing for Uniform Flitches

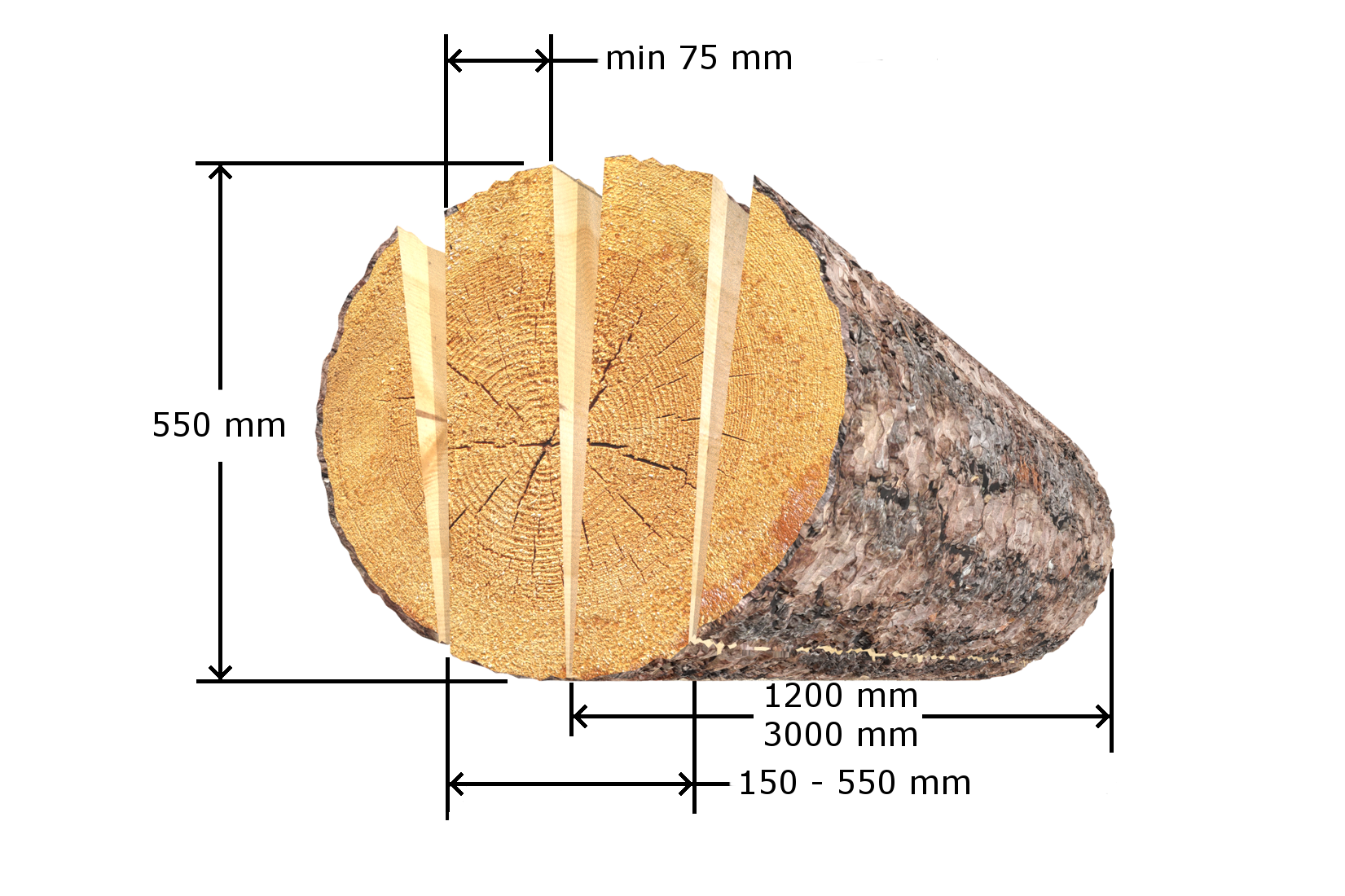

The CZP-3 vertical triple band sawmill with chain conveyor is engineered to process thin to medium-sized logs with diameters up to 550 mm, efficiently producing two two-sided flitches with a maximum thickness of 200 mm. This makes it ideal for a variety of woodworking, furniture, and construction applications.

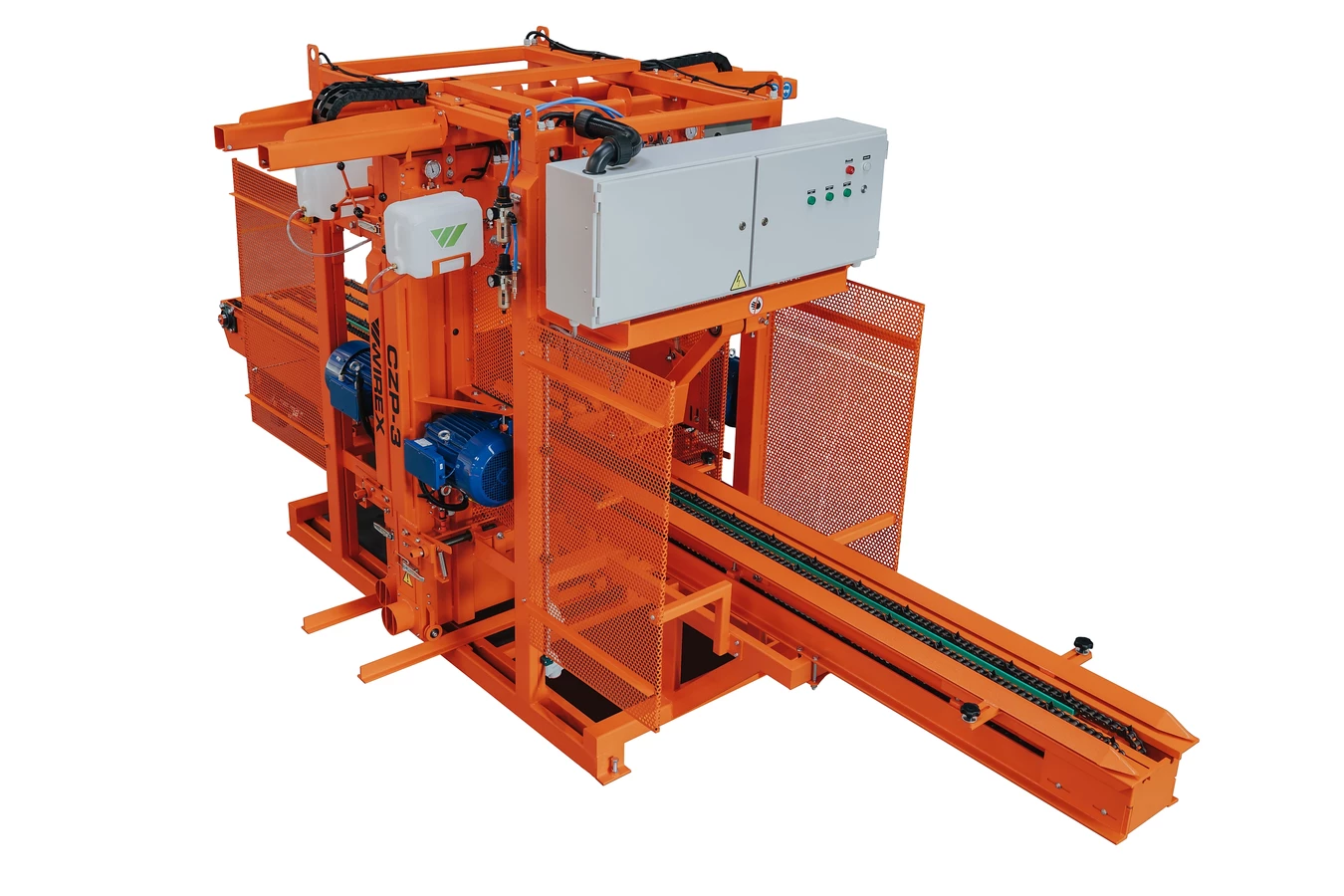

CZP-3 Vertical Triple Band Sawmill with Chain Conveyor – Efficient Log Processing for High-Quality Flitches

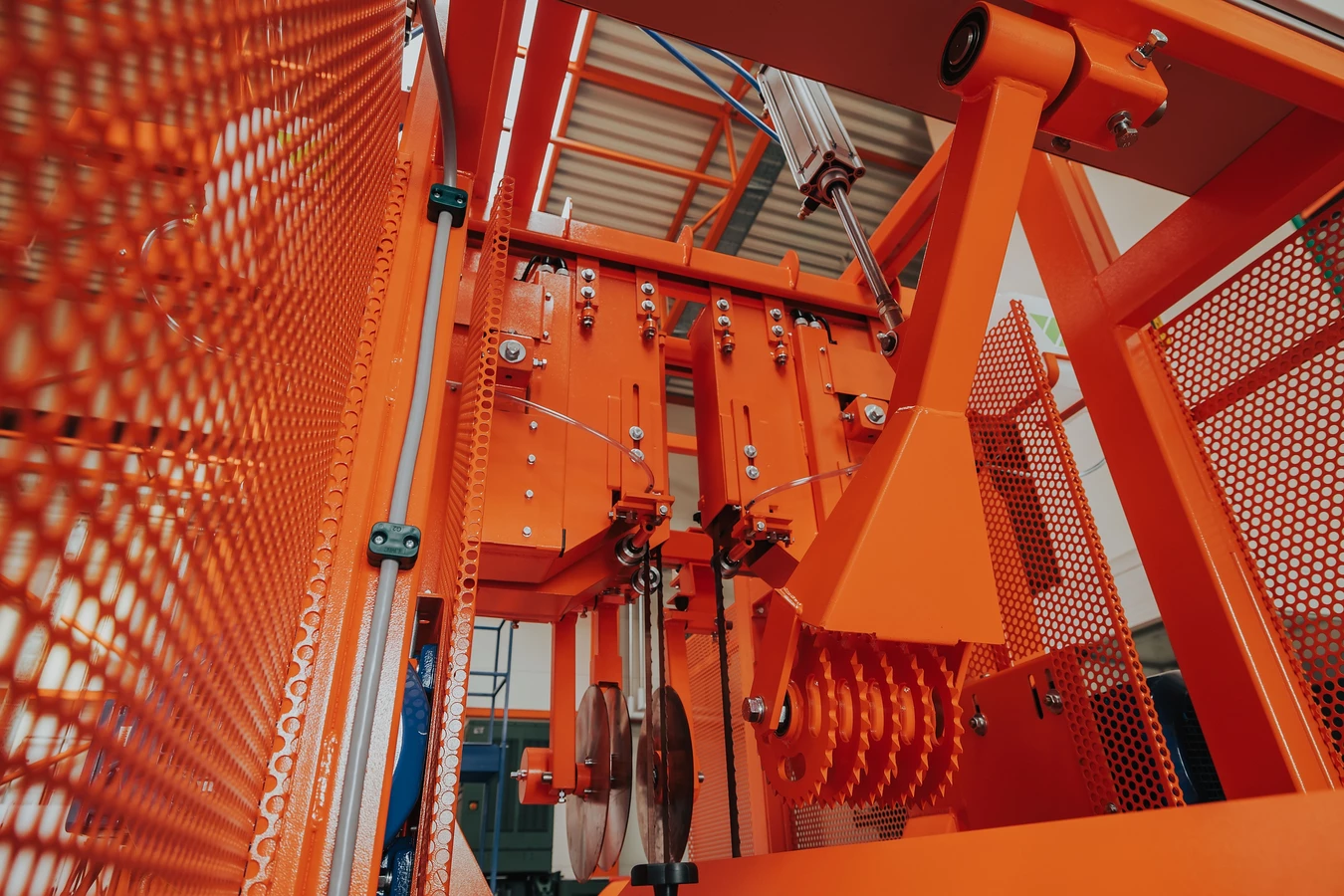

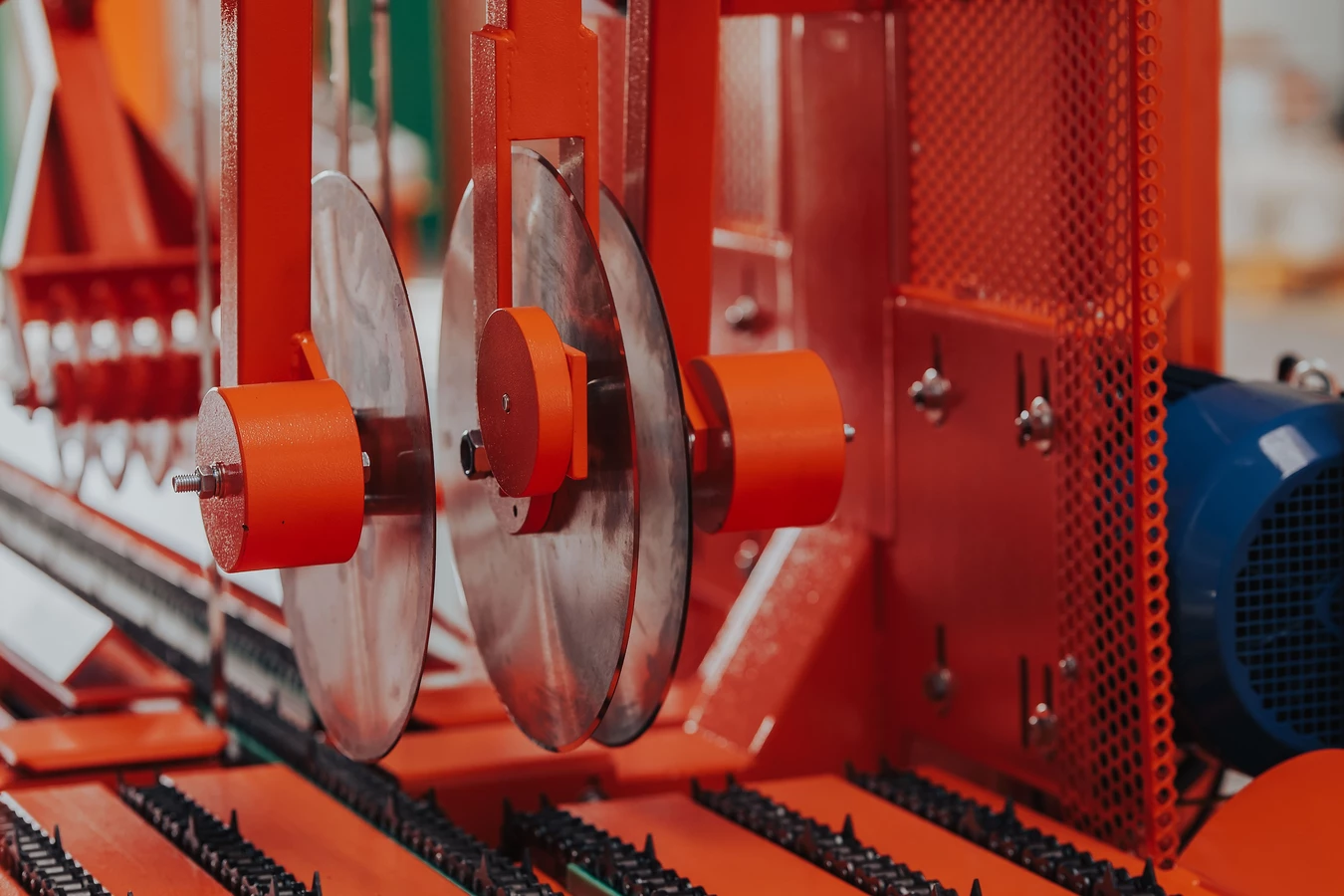

The middle cutting head is fixed, while the side cutting heads can be adjusted manually, with an automatic adjustment option available. The basic model is equipped with a 7.5 kW main motor, but for processing larger-diameter logs, it is recommended to install an 11 kW motor in the middle, which is also available as an option.

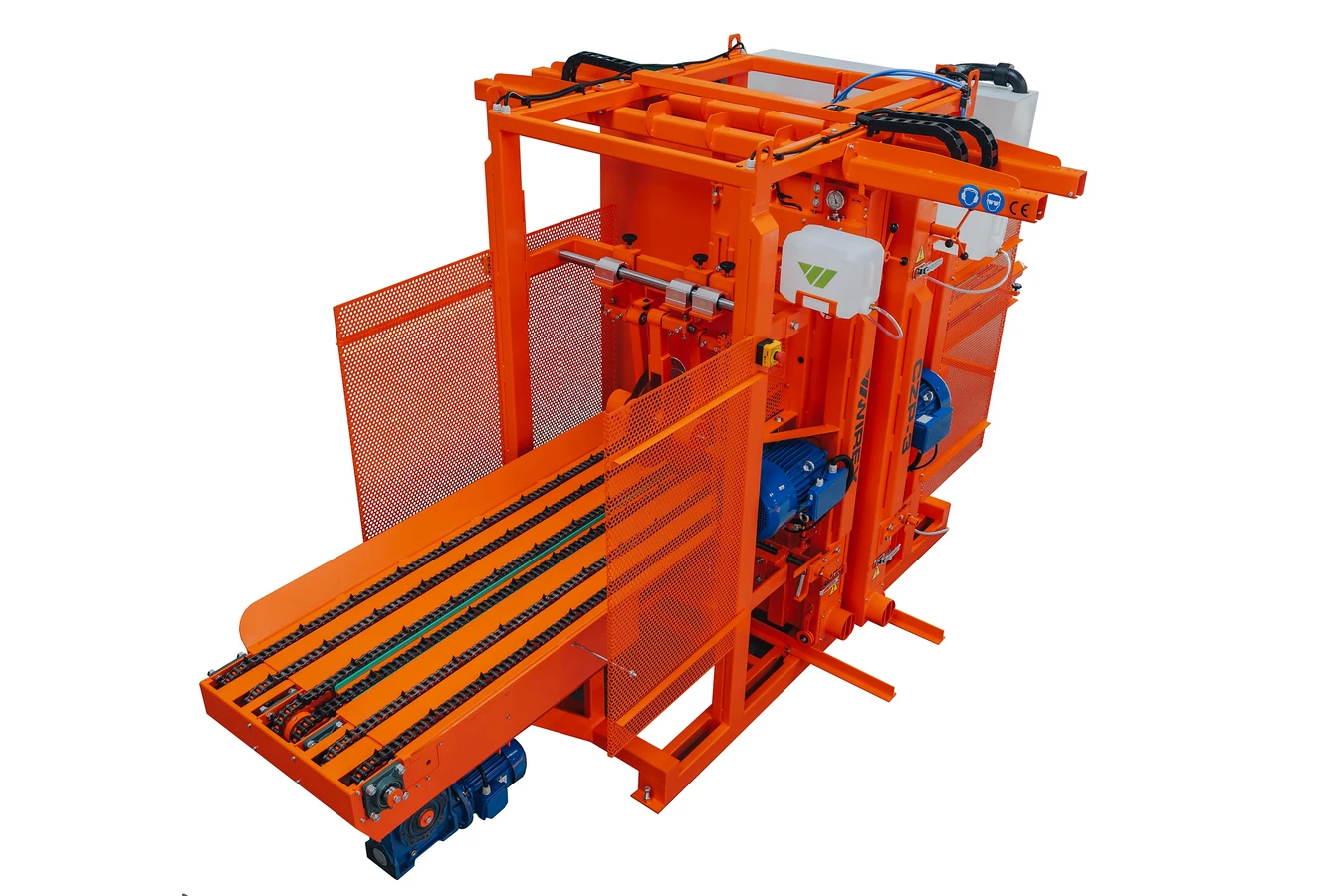

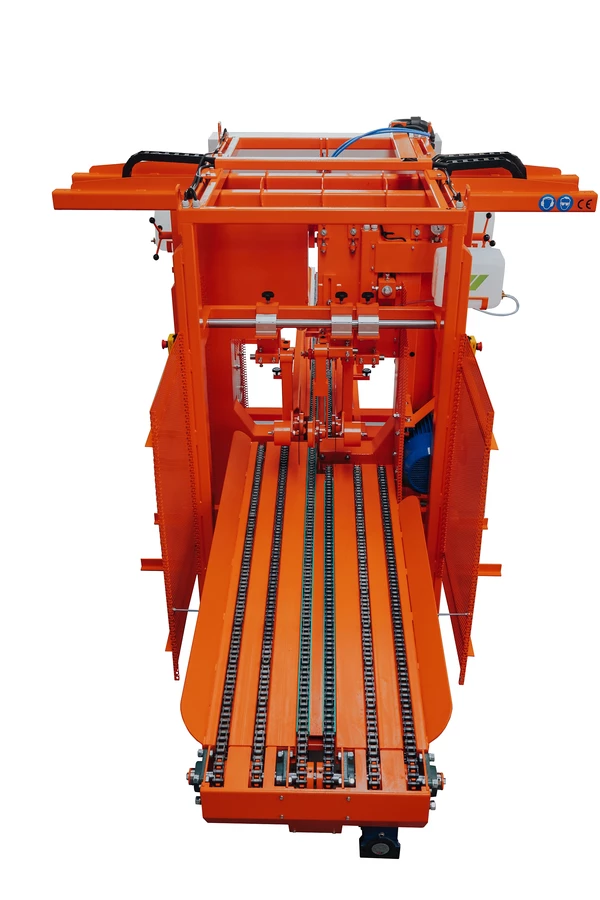

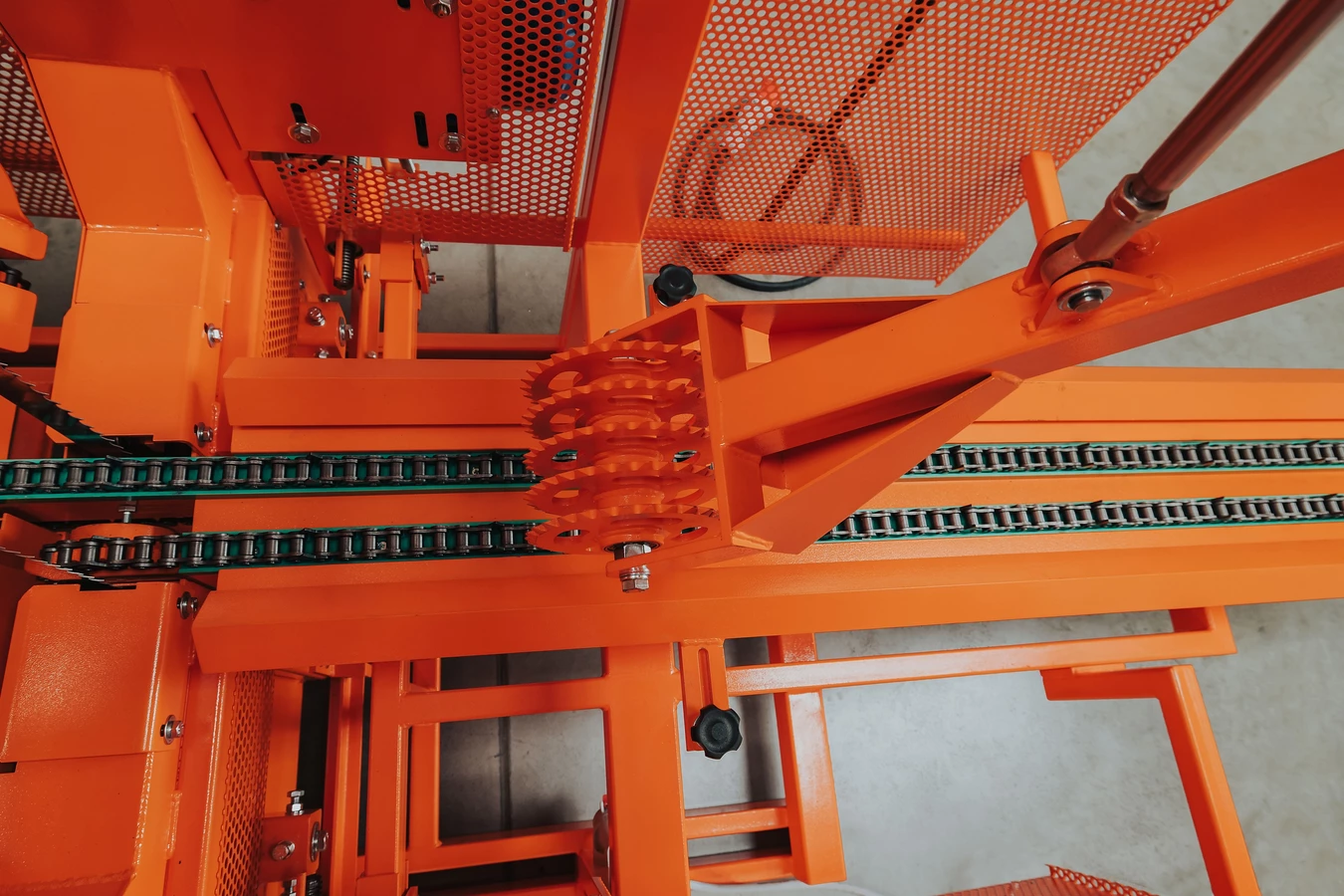

The chain conveyor enhances workflow by smoothly transporting logs through the cutting process, reducing manual handling and increasing productivity. With precise cutting capabilities, the CZP-3 delivers uniform, high-quality flitches, essential for downstream timber processing and manufacturing operations.
Built for durability and heavy-duty use, this sawmill withstands the demands of daily industrial operation. Its user-friendly design allows operators to quickly adjust settings for different log sizes, ensuring efficiency and flexibility in lumber processing facilities.
Ideal for sawmills and woodworking businesses, the CZP-3 with chain conveyor optimizes production, maximizes material yield, and ensures consistent, high-quality results for all your timber processing needs.
Optional equipment
- middle motor shift to 12 kW
- electrical cutting heads slide in/out via controller
- basic down-holder shift to wider one + third plate
- chains built-in outlet feeder, extracting processed elements
- pneumatic down-holder – additional
| Data | Value |
|---|---|
| Dimensions |
|
| Weight | 2200 kg |
| Dimensions of infeed workpiece |
|
| Dimensions of obtained flitch | minimal thickness 75 mm per side |
| Main motors power | 3 x 8,1 kW |
| Power supply | 400 V (3 phase) |
| Cutting heads slide in/out | manual |
| Conveyor feed |
|
| Band wheels diameter | 600 mm |
| Band saw specification |
|
| Workpiece down-holder |
|

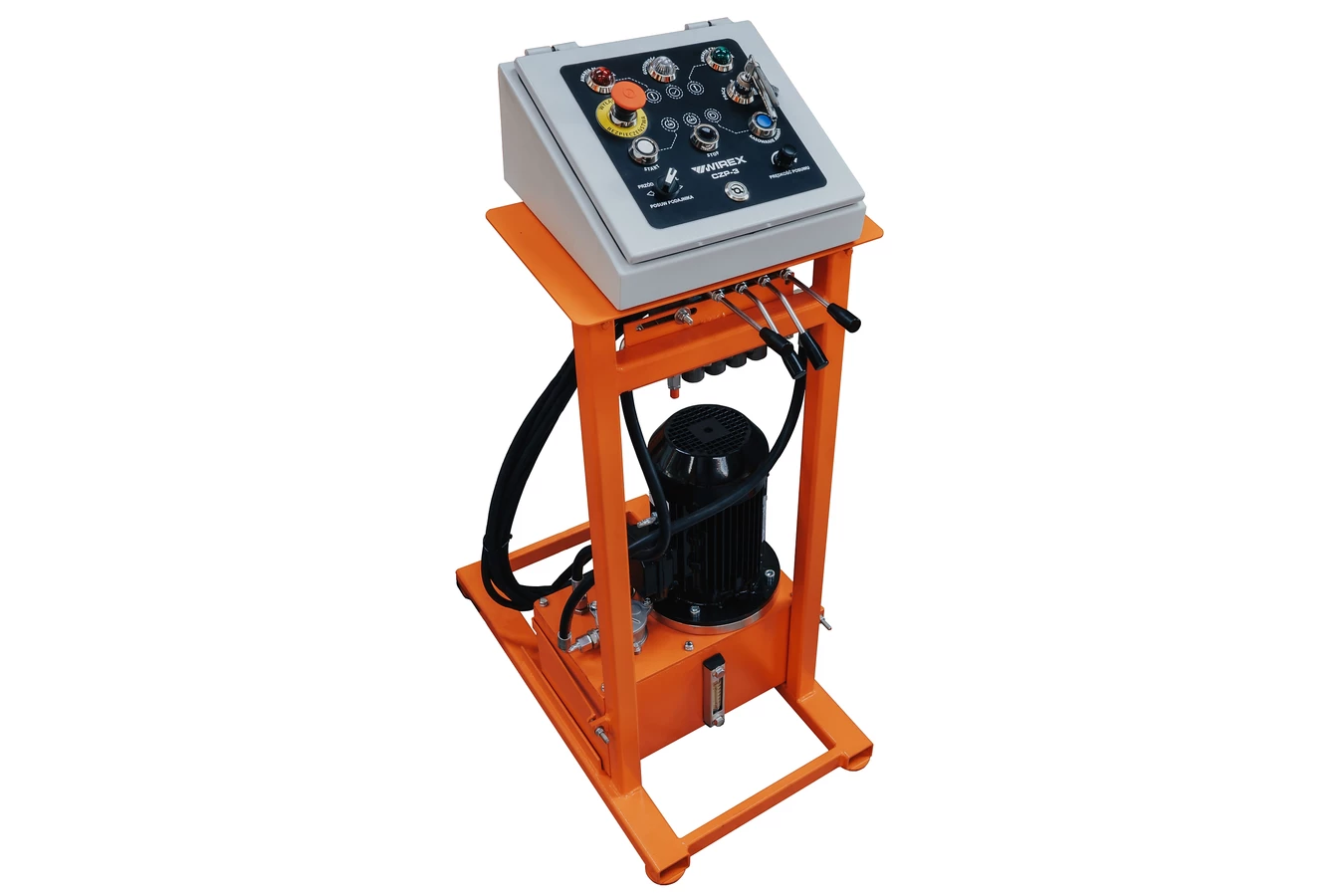

| Controls | suspended rotary control panel |
| Capacity per hour | up to 4 m3 |
