Precise Log Processing for Flitches, Planks, and Offcuts

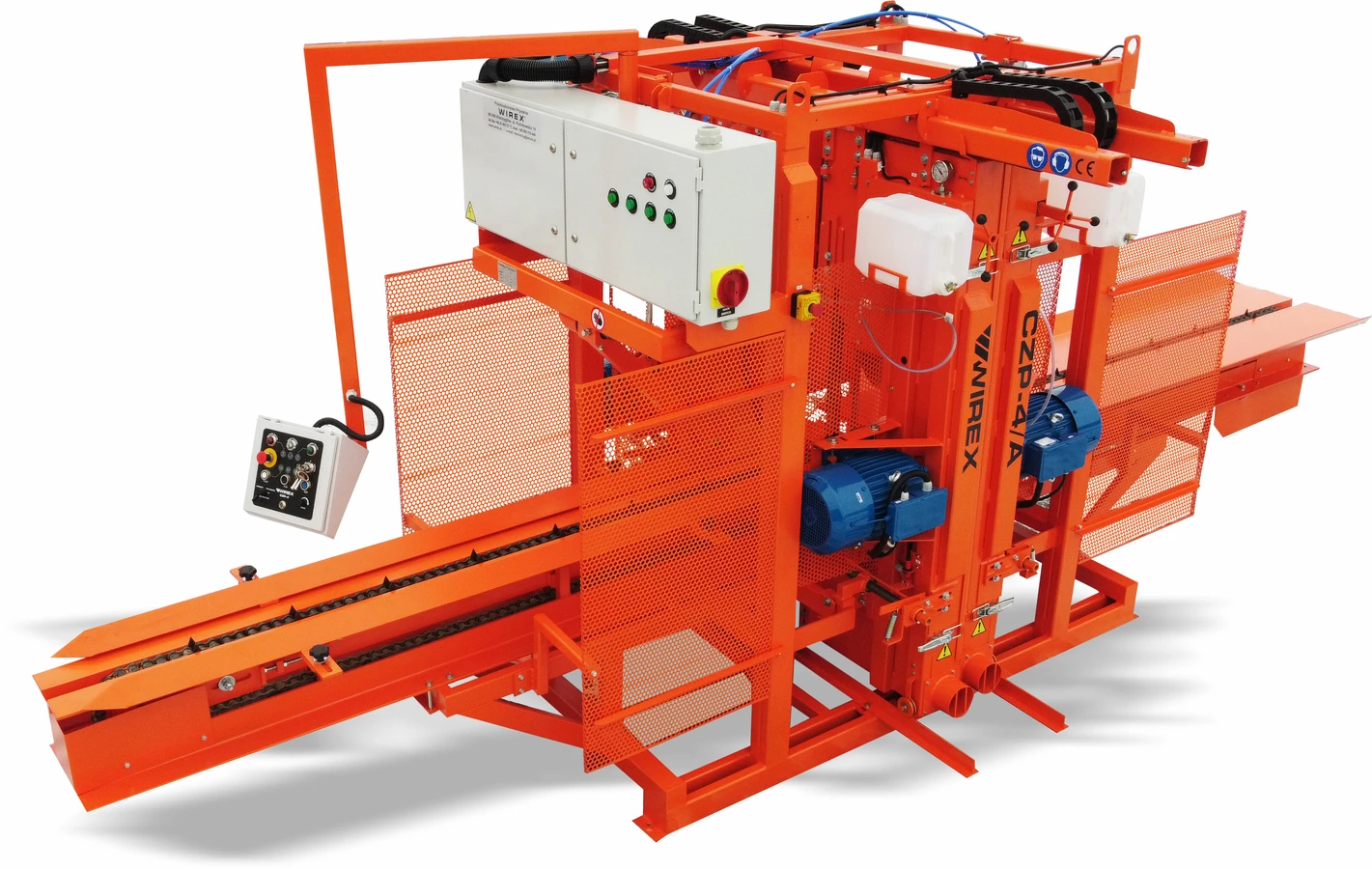

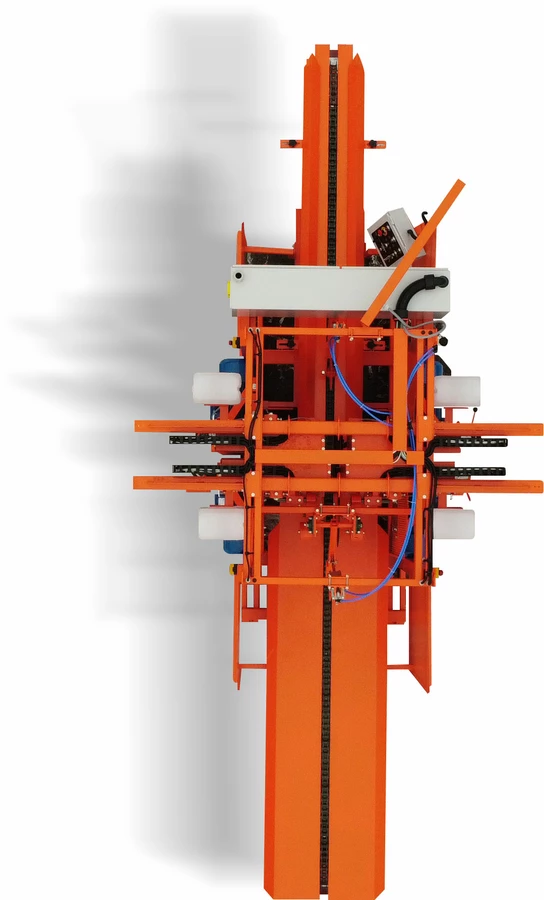

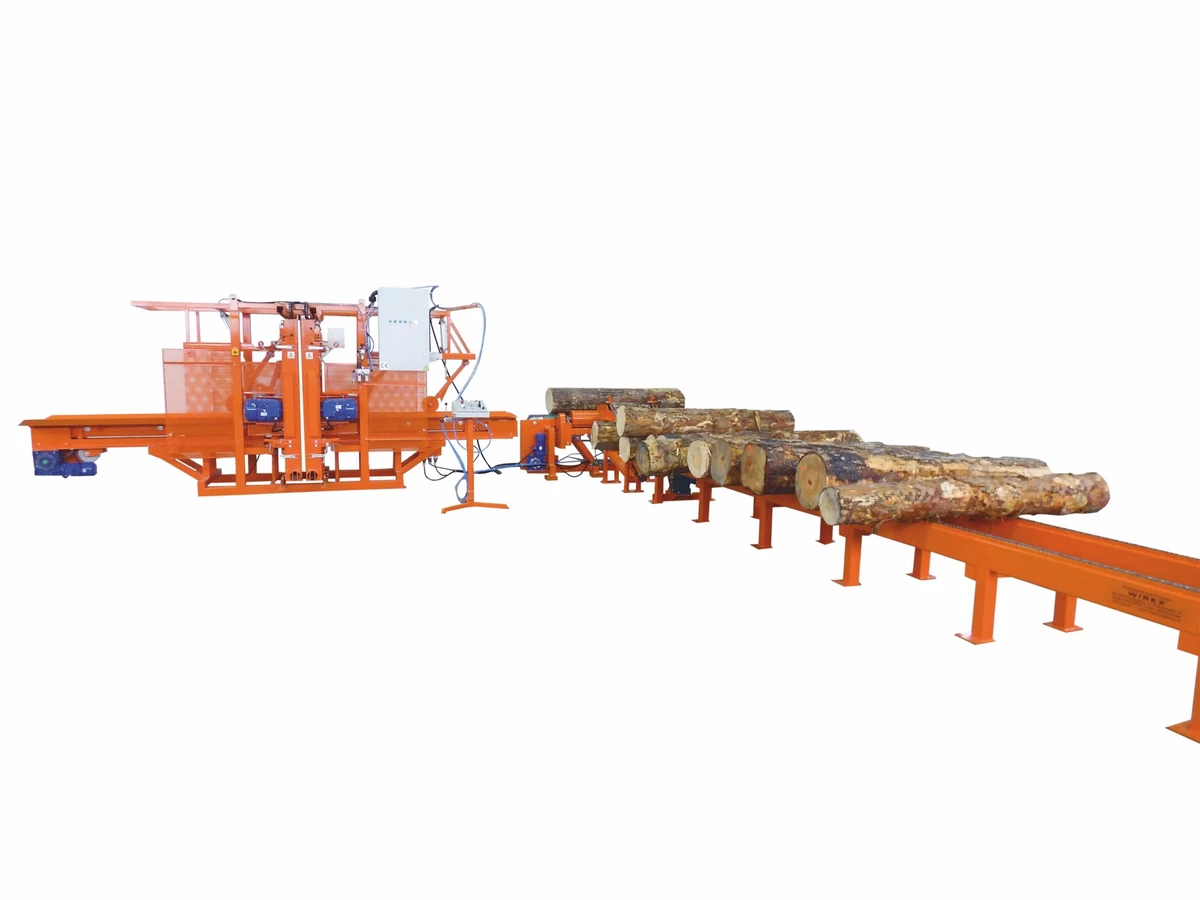

The CZP-4/A vertical quadruple band sawmill with a robust chain conveyor is engineered for efficient processing of thin round wood with diameters up to 400 mm. This advanced sawmill offers versatile production options, allowing operators to choose between two output configurations to meet different timber processing needs.
CZP-4/A Vertical Quadruple Band Sawmill with Chain Conveyor – Efficient Log Processing for High-Quality Flitches

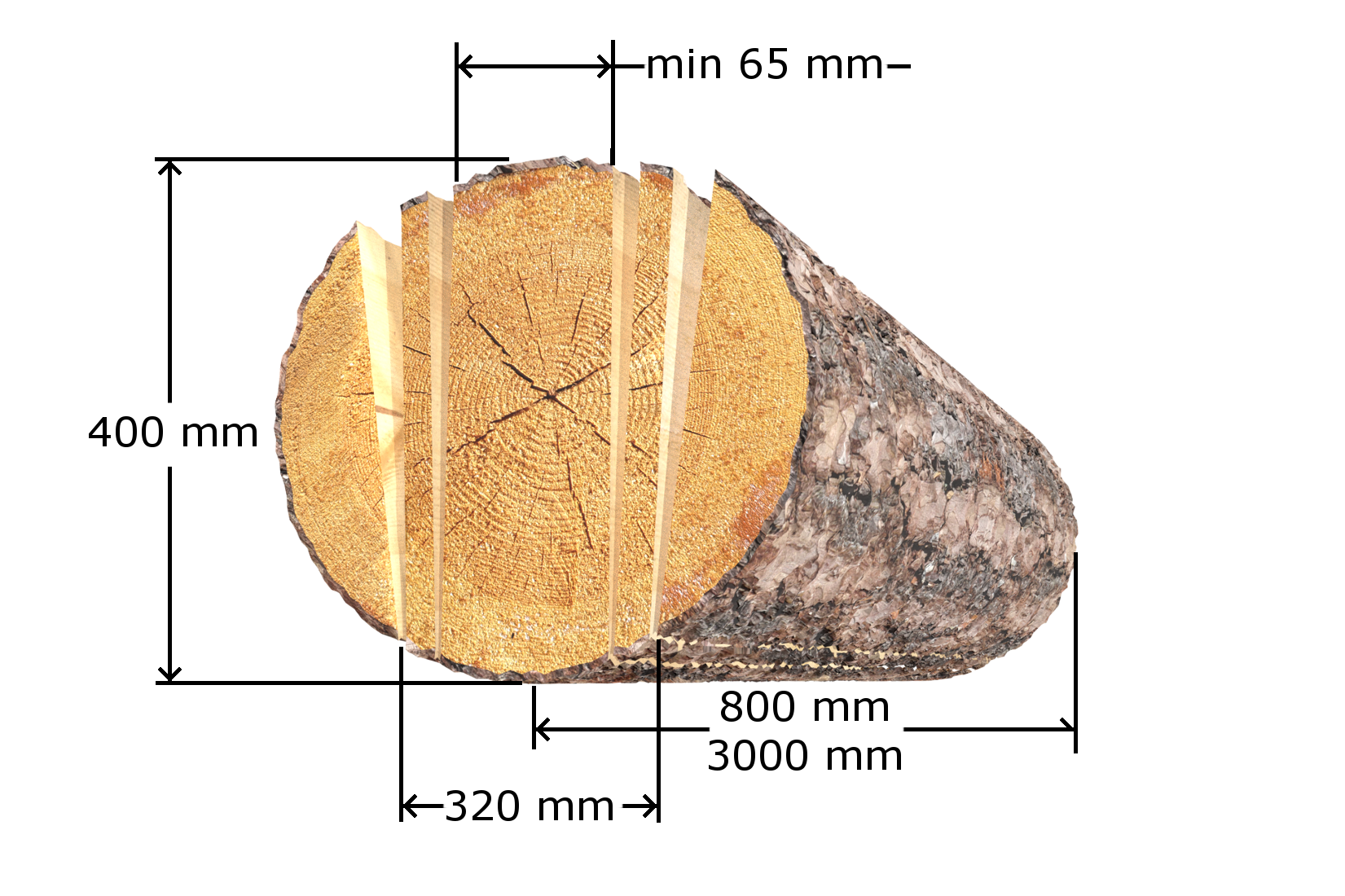

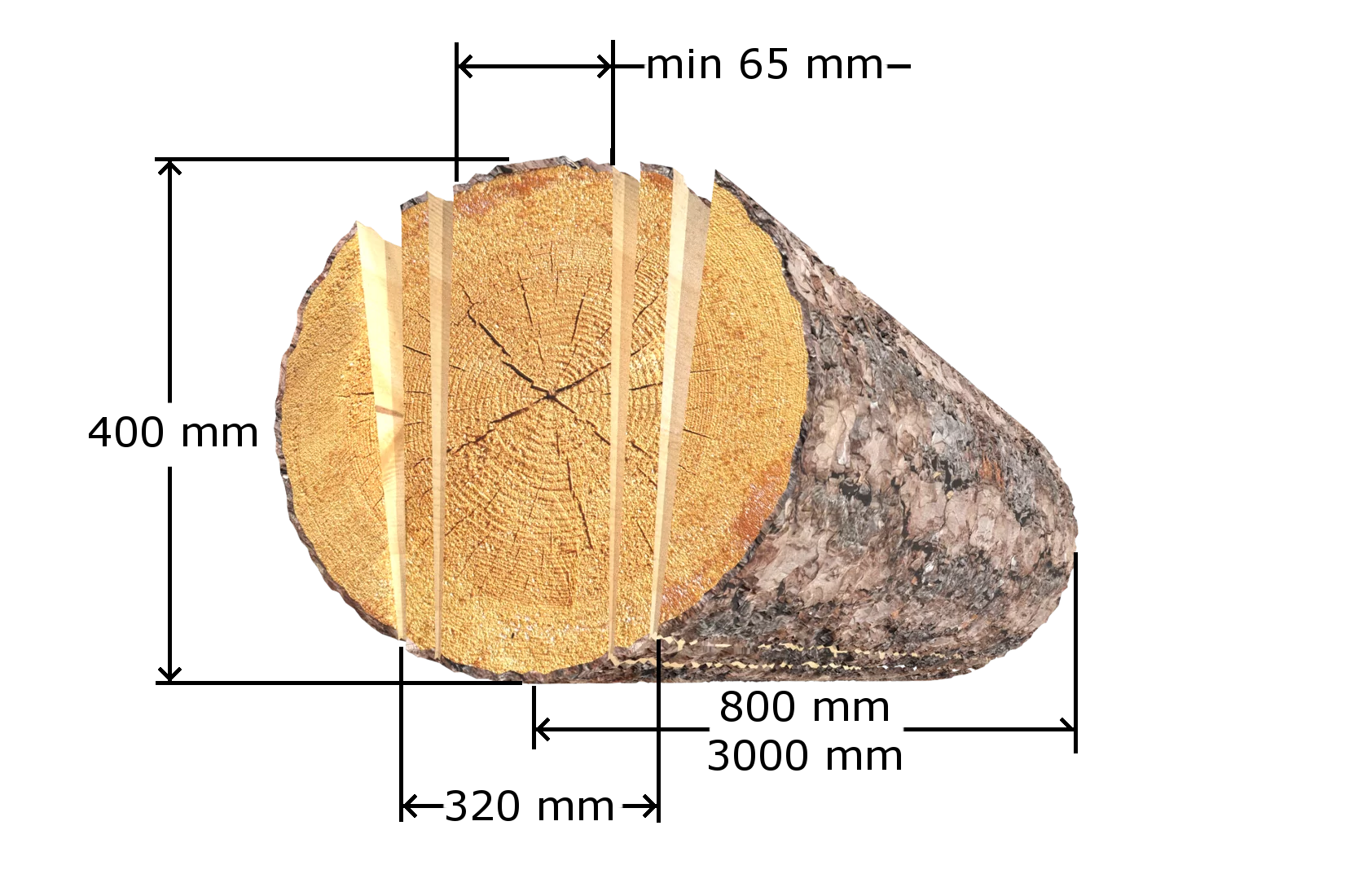

In one configuration, the CZP-4/A produces a single flitch, yielding two planks and offcuts, ideal for projects requiring specific dimensions with minimal waste. Alternatively, it can process three flitches simultaneously, significantly increasing throughput and maximizing productivity for larger-scale operations.

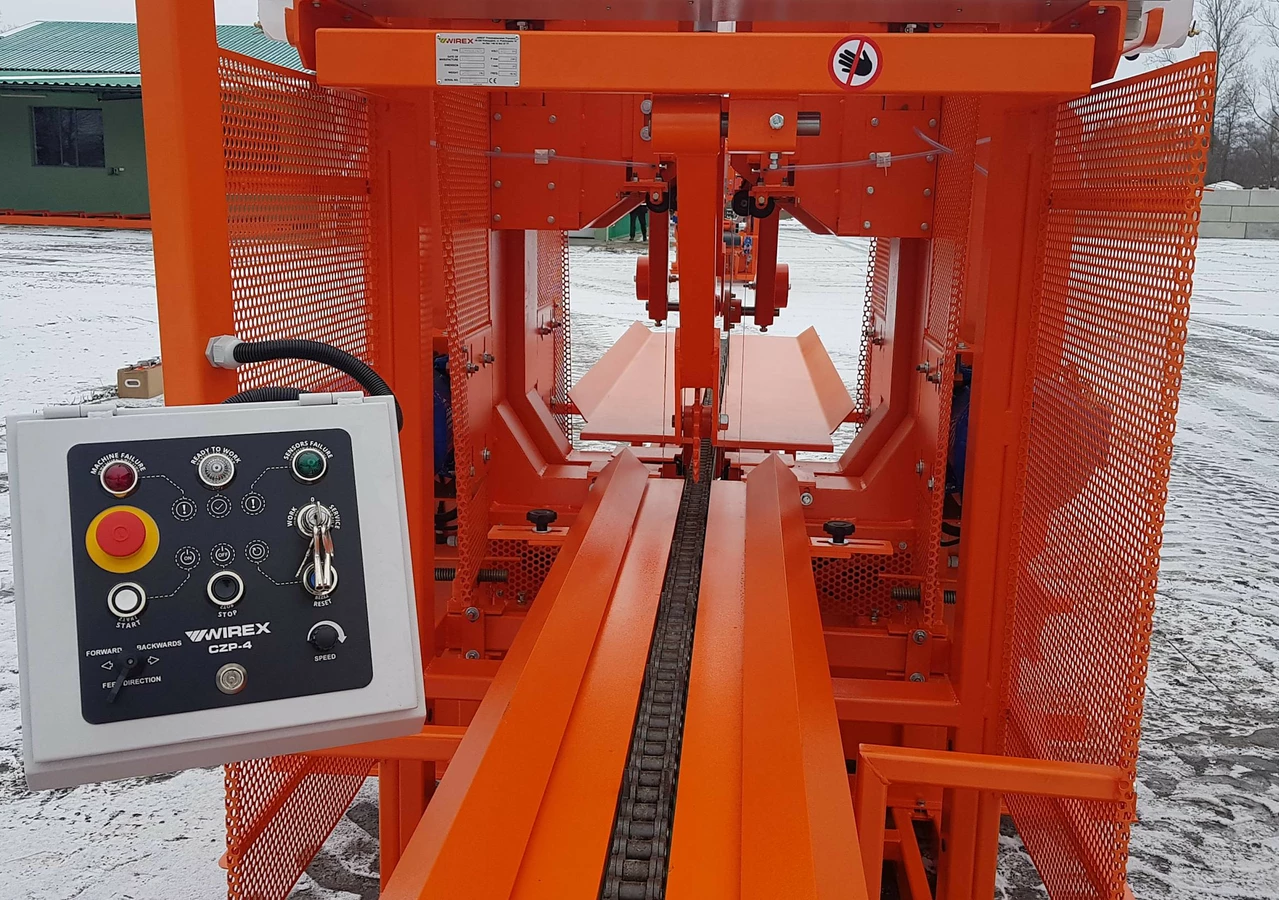

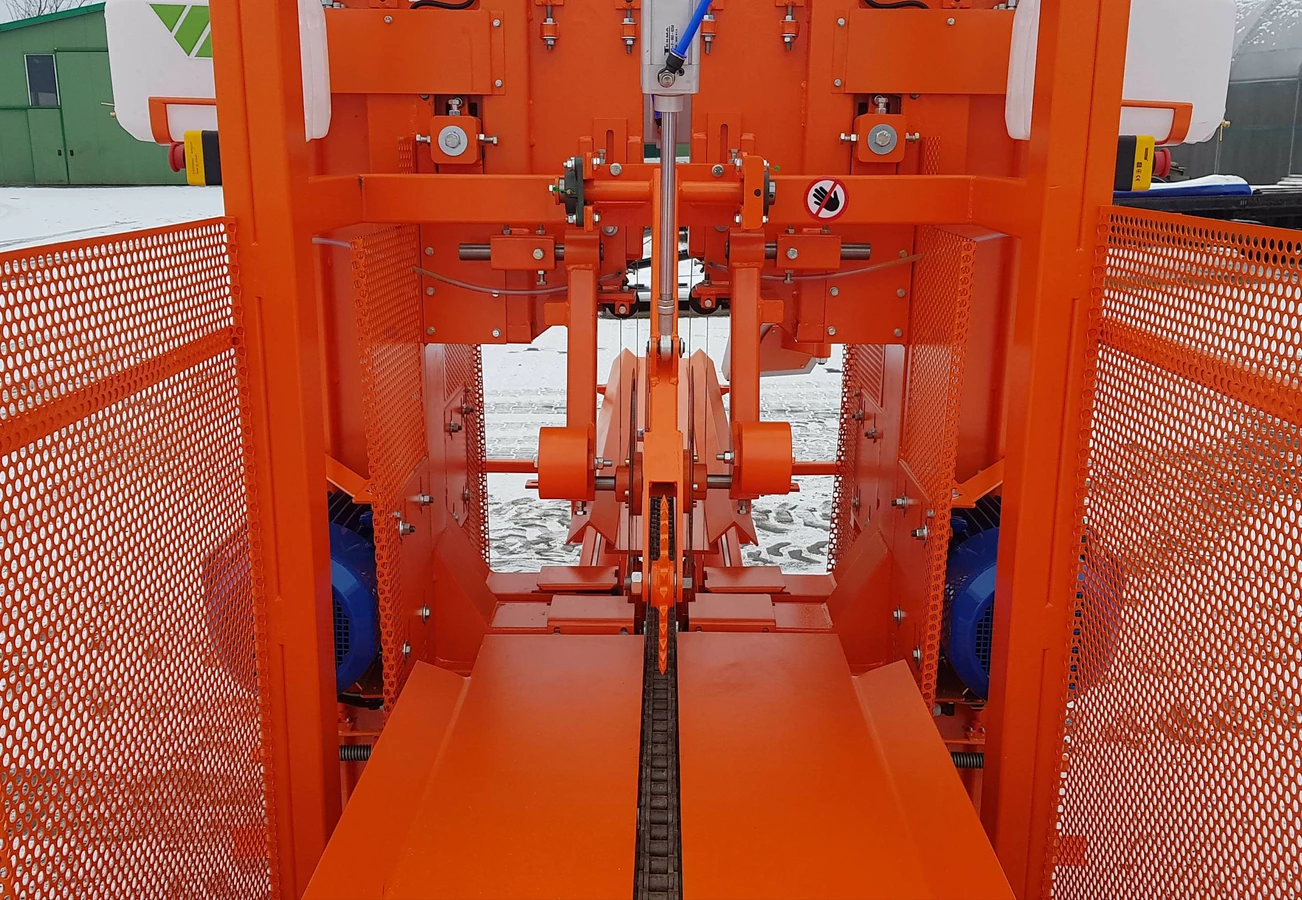

Equipped with precision cutting technology and a user-friendly interface, the CZP-4/A ensures consistent, high-quality flitches in every cut. The integrated chain conveyor streamlines workflow, reduces manual handling, and lowers labor costs, making it an essential asset for modern sawmills, woodworking facilities, and timber processing plants.
Designed for reliability and efficiency, the CZP-4/A vertical band sawmill with chain conveyor is a smart investment for businesses looking to optimize production, increase output, and maintain high standards of craftsmanship.
Optional equipment
- motors shift to 4 x 8,1 kW
- pneumatic down-holder (additional)
- chains built-in outlet feeder, extracting processed elements
| Data | Value |
|---|---|
| Dimensions |
|
| Weight | 2250 kg |
| Dimensions of infeed workpiece |
|
| Dimensions of obtained flitch | min. 65 mm |
| Main motors power | 4 x 6 kW |
| Power supply | 400 V (3 phase) |
| Cutting heads slide in/out | manual |
| Conveyor feed |
|
| Band wheels diameter | 600 mm |
| Band saw specification |
|
| Workpiece down-holder |
|
| Controls | suspended rotary control panel |
| Capacity per hour | up to 4,5 m3 |
