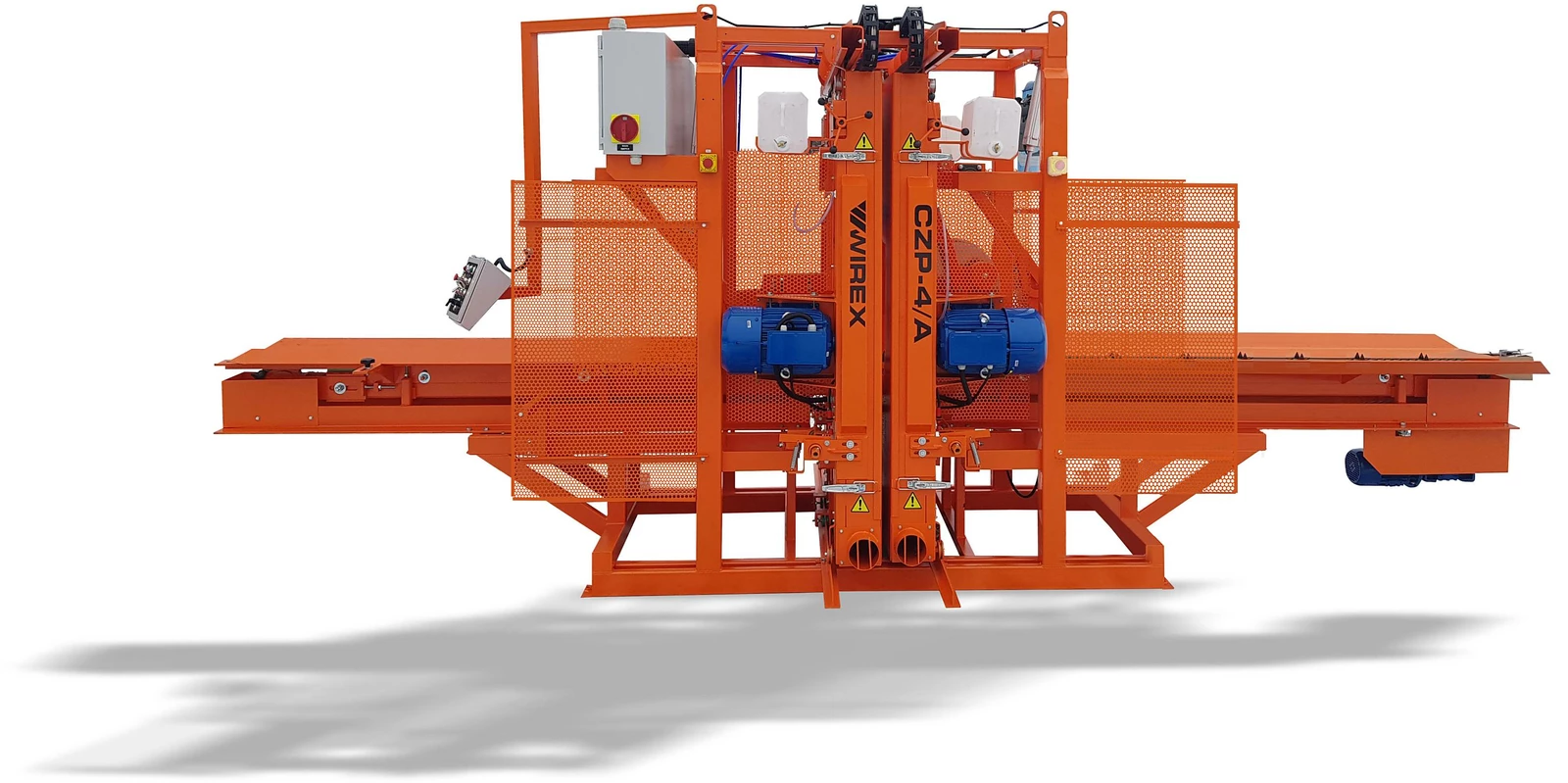

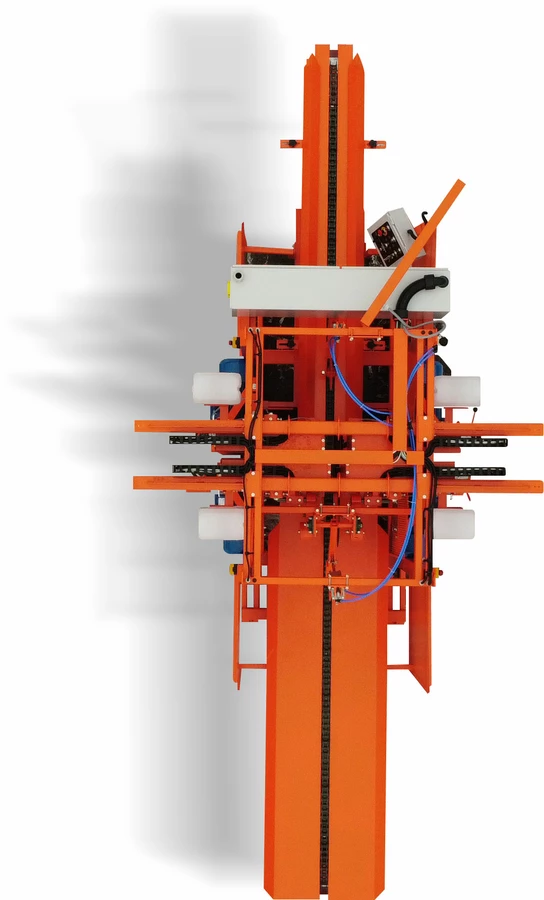

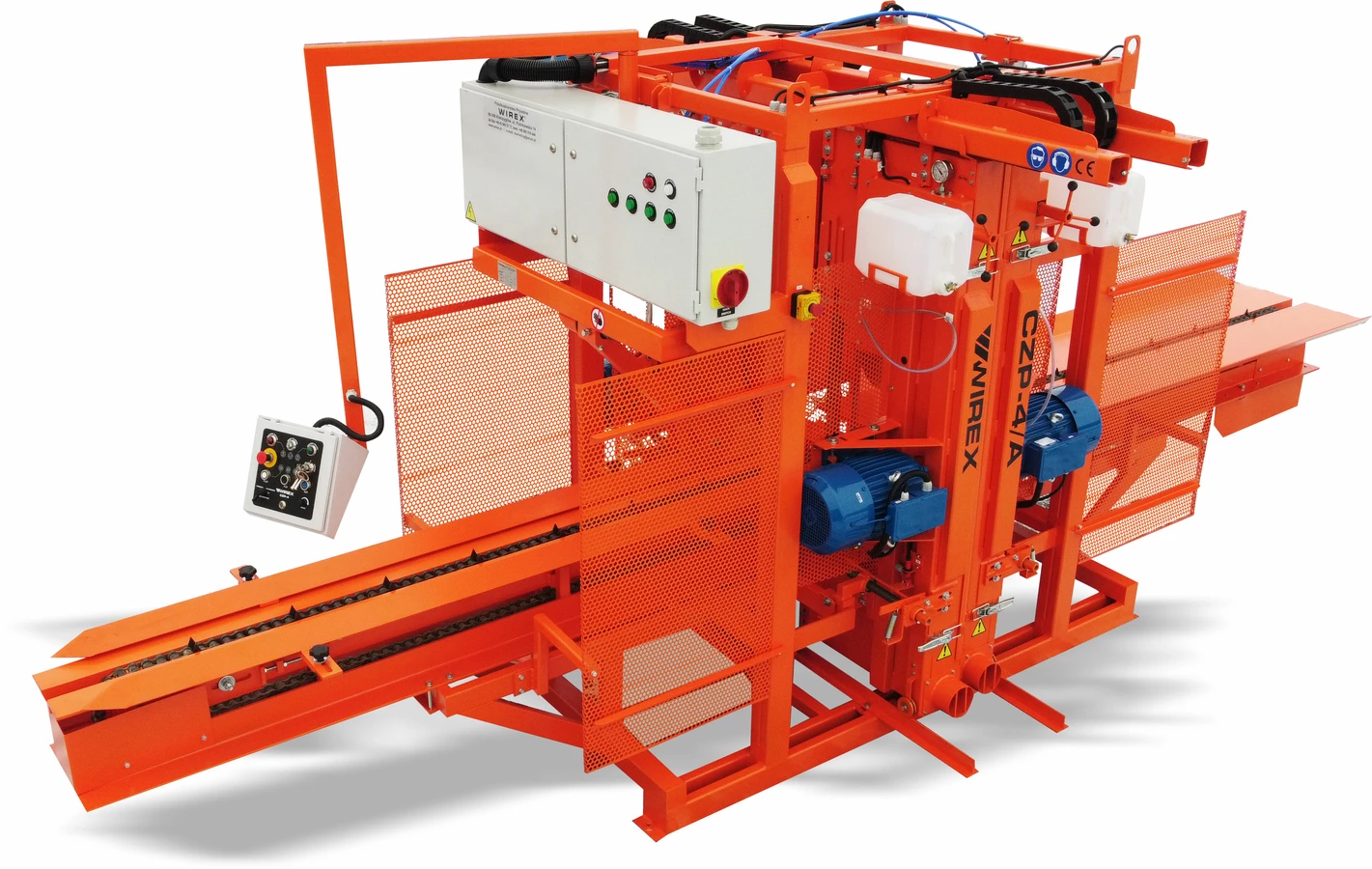

Vertical CZP-4/A WZM with Chain Conveyor

CZP-4/A WZM Vertical Quadruple Band Sawmill with Chain Conveyor – High-Capacity Timber Processing

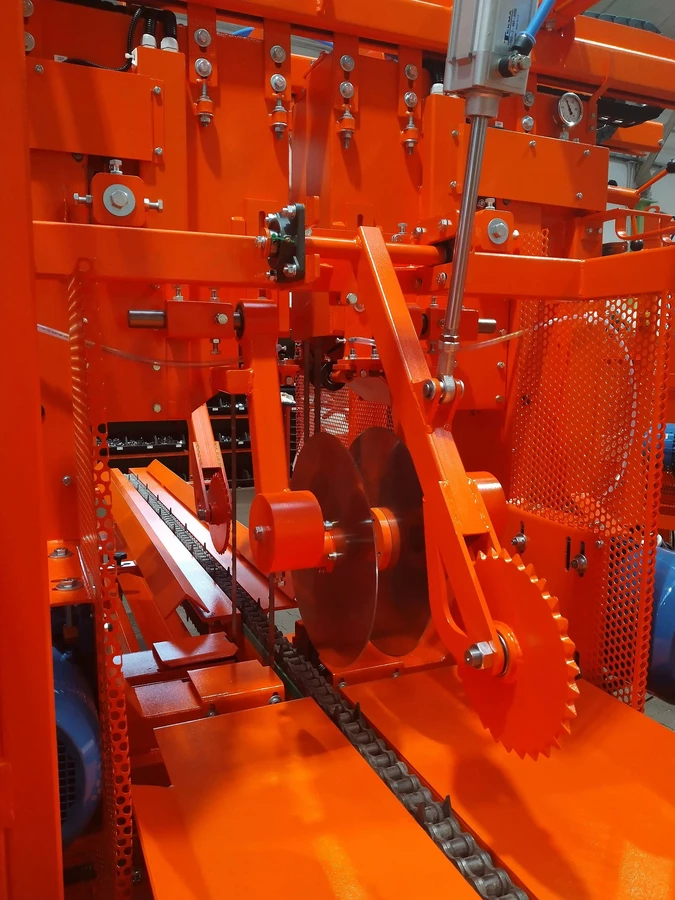

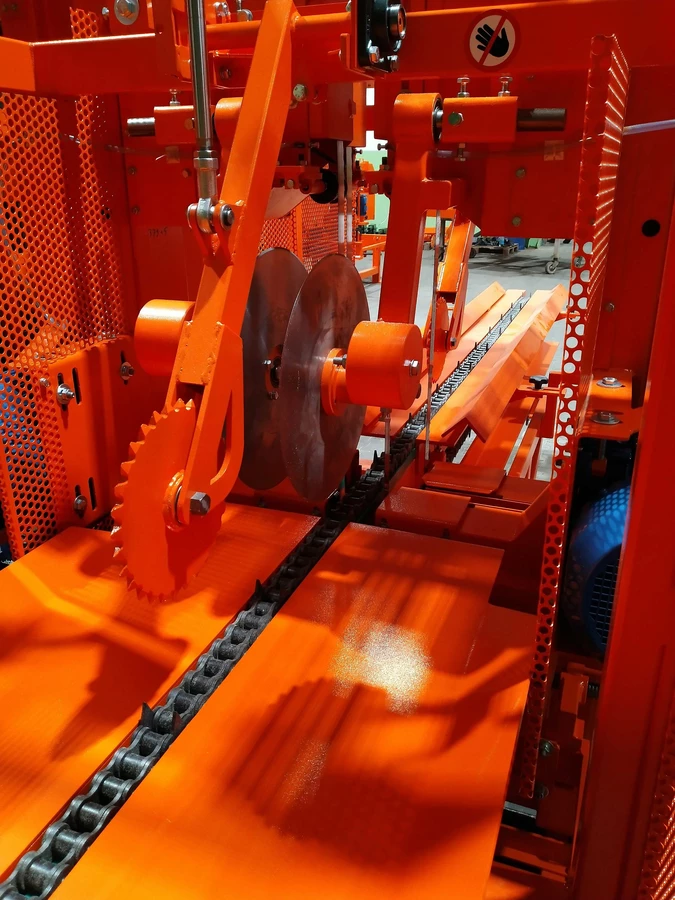

The sawmill can process small-diameter logs and round wood up to 550 mm in diameter and 3,000 mm in length. Its four cutting heads allow for either one flitch producing two planks on both sides or three flitches at once. Perfect cut stability is ensured by pneumatic down-holders.

The standard machine is equipped with 8.1 kW motors, but it can optionally be upgraded with 4 × 12 kW motors or 2 × 12 kW in the middle and 2 × 8.1 kW on the sides, depending on individual production requirements.

This innovative sawmill design optimizes workflow, allowing operators to process larger volumes of wood in less time. The integrated conveyors streamline log handling, enhance productivity, and ensure smooth material flow throughout the cutting process, maximizing both efficiency and profitability.

Built with advanced technology and user-friendly controls, the CZP-4/A WZM ensures consistent, high-quality flitches and planks while minimizing waste. Its robust construction and intelligent design make it a reliable investment for sawmills seeking to increase output, reduce costs, and maintain high standards of craftsmanship.

Ideal for businesses aiming to stay competitive in timber processing, this sawmill combines precision, speed, and durability to optimize your production line and elevate overall operational performance.

Optional equipment

• workpiece extracting chains fitted in the output conveyor
• additional pneumatic down-holders – 2 units
• logs loading conveyor type LPW
• main motor power 12 kW
