PF 700-KBA

PF 700-KBA Sawmill Waste Cutter – High-Performance Crosscut Saw for Efficient Firewood Production

Designed for durability and long-term reliability, the PF 700-KBA maintains consistent cutting performance even in demanding industrial environments. Its user-friendly design ensures straightforward operation and low-maintenance servicing, making it ideal for both small-scale workshops and large-scale sawmill operations.

By converting waste into valuable output, this machine significantly improves material efficiency, productivity, and supports sustainable wood processing practices. Perfect for businesses looking to optimise output and produce high-quality firewood, the PF 700-KBA Sawmill Waste Cutter is an essential addition to any modern sawmill.

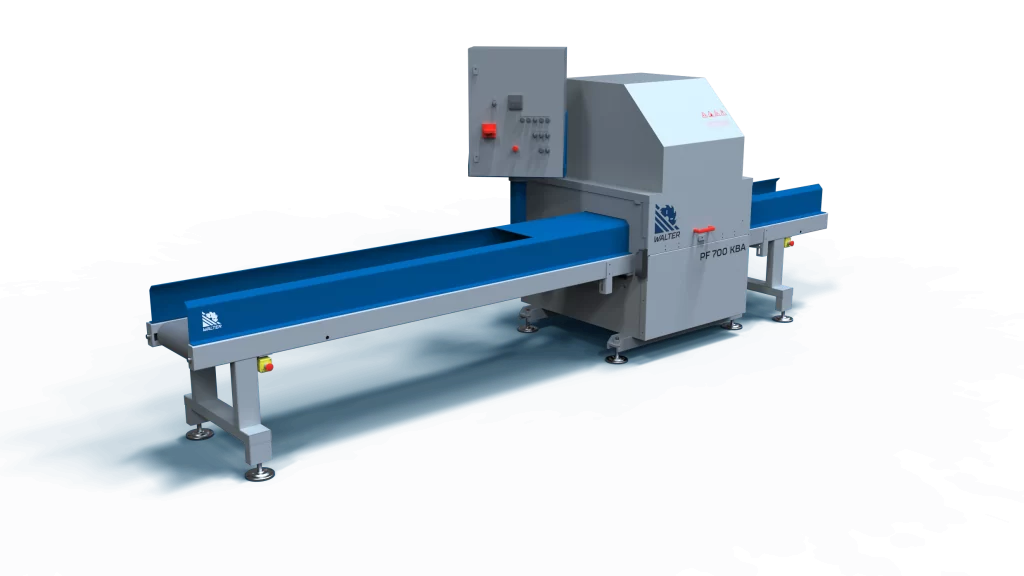

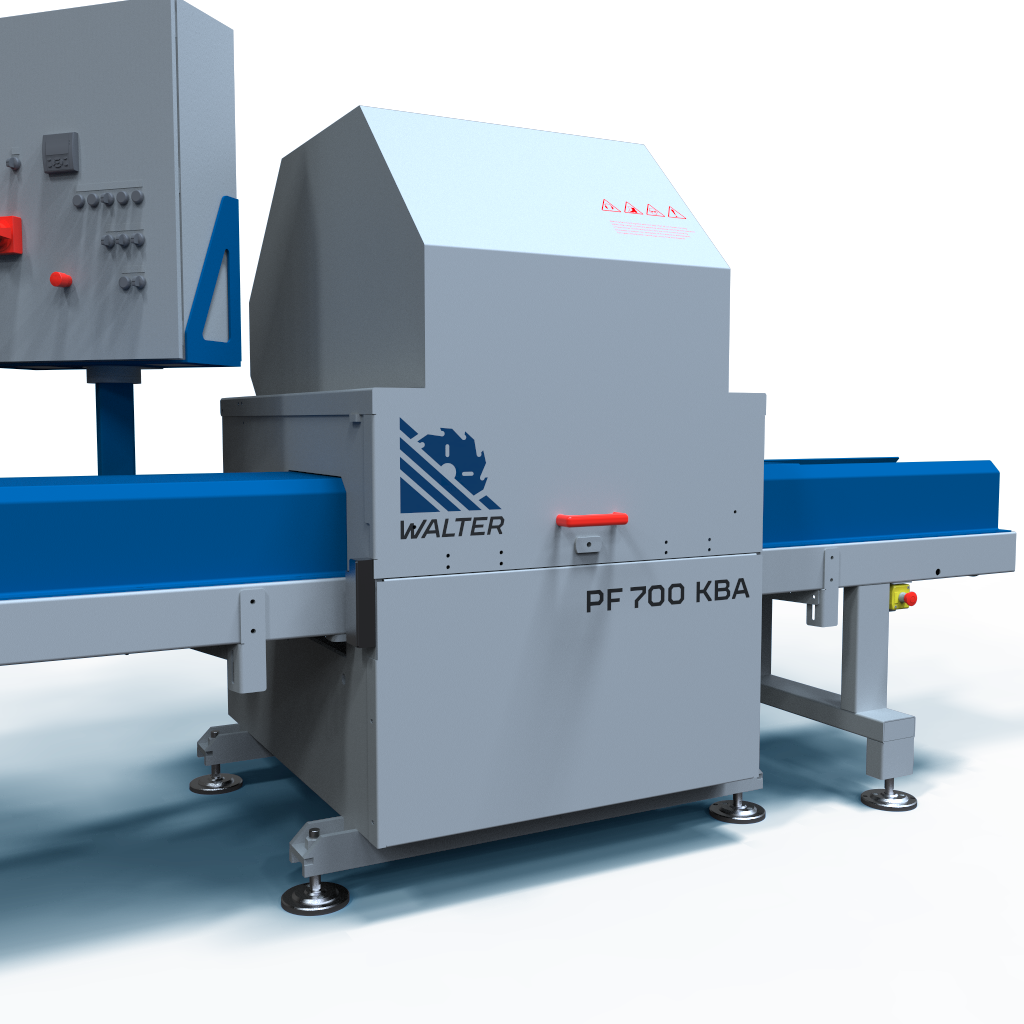

The machine features a compact, heavy-duty frame constructed from laser-cut steel components, ensuring exceptional stability, precision, and durability. The main drive system is powered by a high-efficiency electric motor, which transmits power to the circular saw spindle via a robust belt drive, delivering smooth and reliable cutting performance.

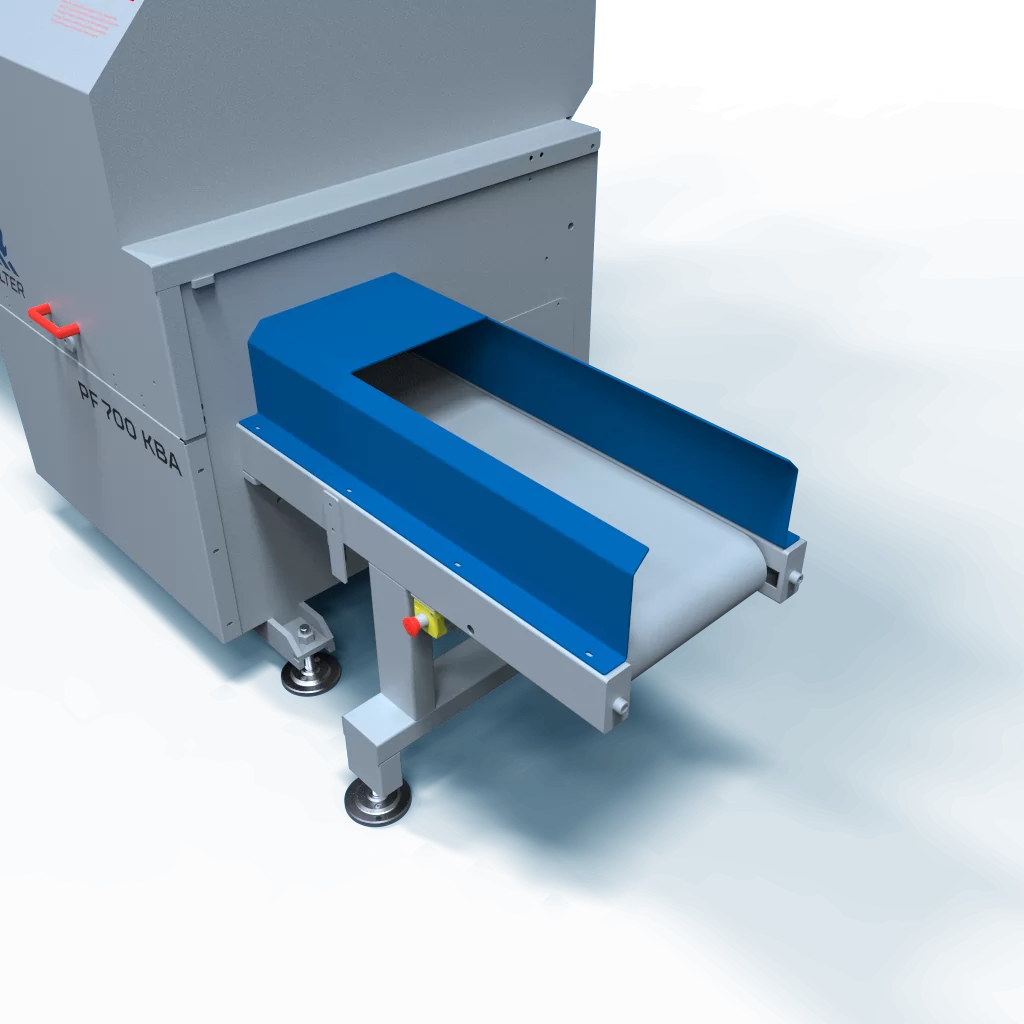

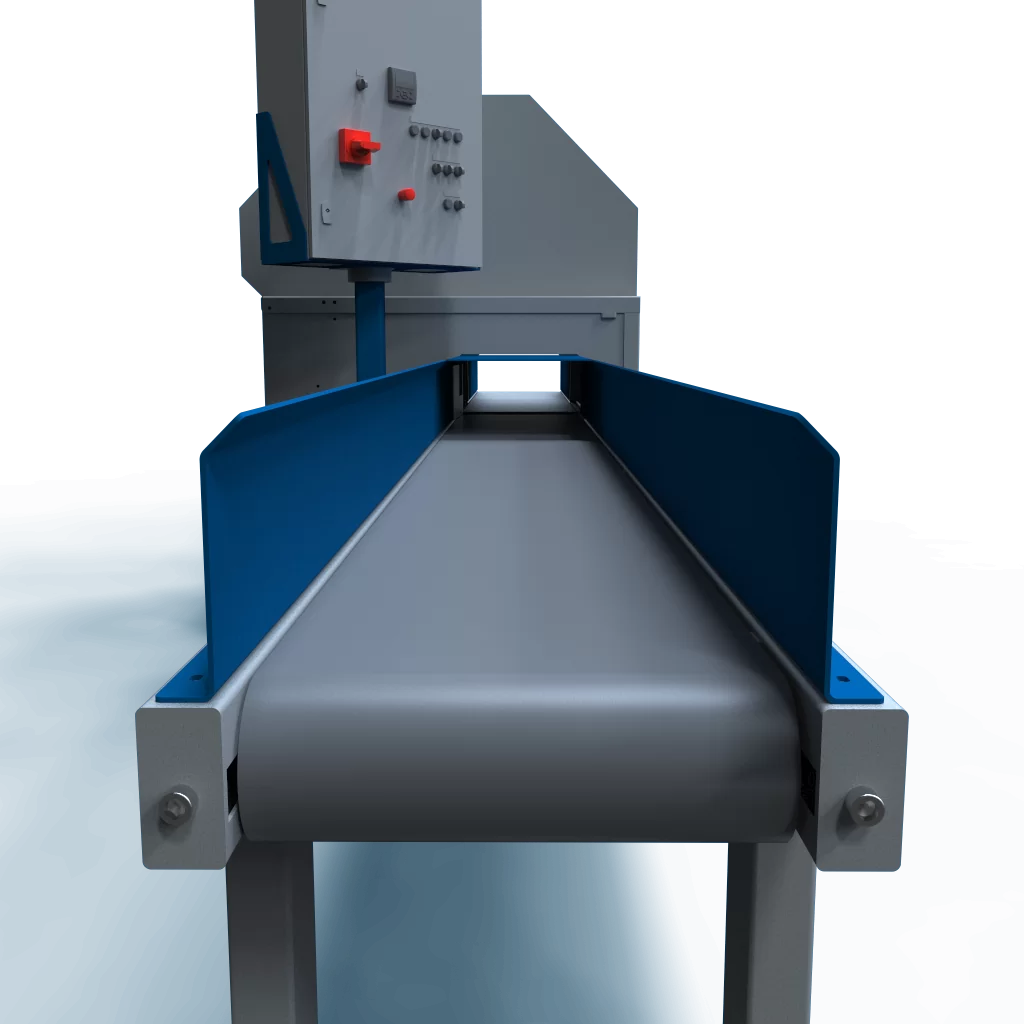

Material handling is optimised through a system of two interconnected conveyor tables with driven belts, enabling efficient feeding and collection of timber. The conveyor system is powered by gear motors and chain transmission, ensuring consistent and controlled material flow throughout the cutting process.

During operation, the workpiece is securely held in place by pneumatically controlled upper clamps, providing maximum safety, accuracy, and cutting stability on both sides of the material.

Optional equipment:

• Pallet wrapping machine
• Inclined conveyor
• Wrapper system

Dimensions

Data	Value
Length	5055 mm
Height	1977 mm
Width	1415 mm
Track length	13 380 mm

Motor

Data	Value
Main motor power	12 – 16.2 kW
Feed motor power	1.1 kW

Cutting parameters

Data	Value
Workpiece width max	400 mm
Workpiece height	180 mm
Min. length of cut material	150 mm
Length of cut material	2200 mm
Saw diameter	700 m

•
•
•
•
