Tel: +44 (0) 197 825 4472FI -150
Multi-rip saw & edger with 1 fixed & 4 movable saws

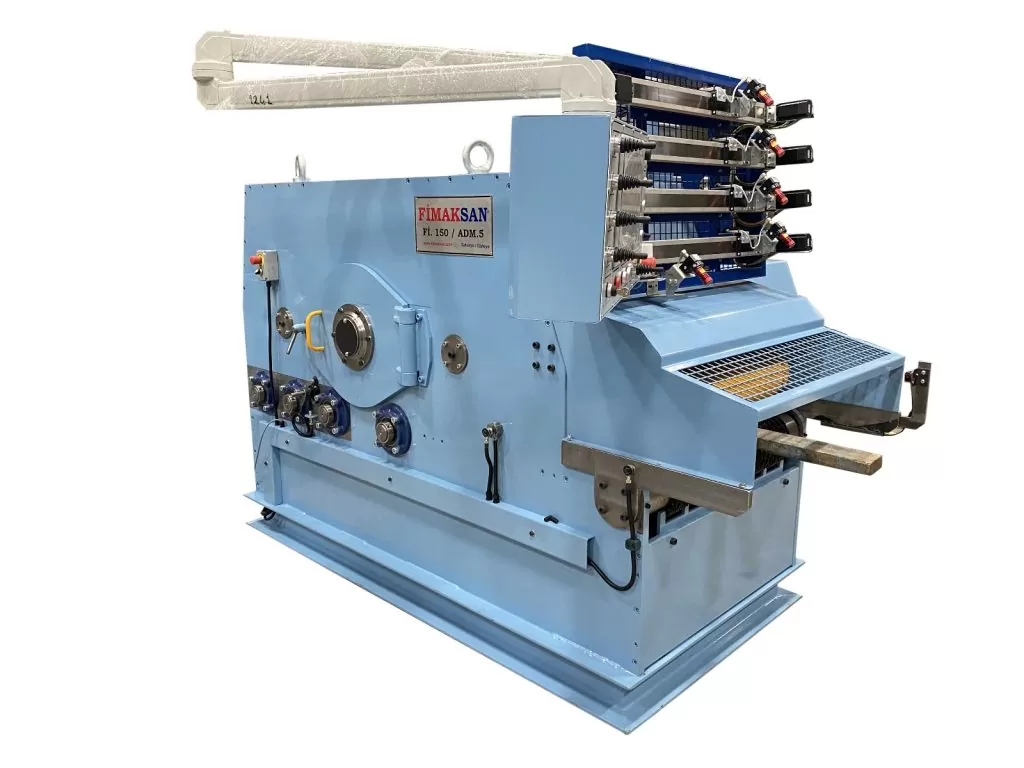

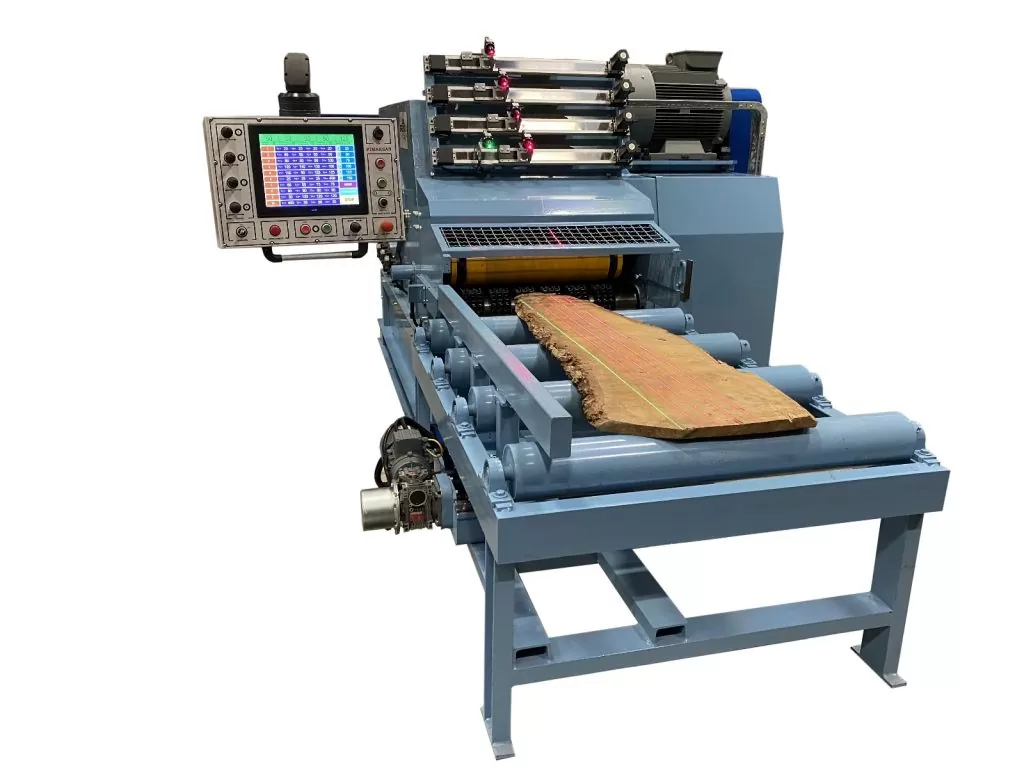

The FI-150 is a robust multi-saw weighing nearly 7 tons, featuring four blades that are digitally controlled from the operator panel via servo drives. It can support one or several fixed blades and is equipped with laser guides for precise cutting, all while being servo-controlled for optimal accuracy
Advantages:
- 1 (2,3 or more) Fixed & 4 Movable Saws
- Servo Motor with Ball Screw Positioning for Precision

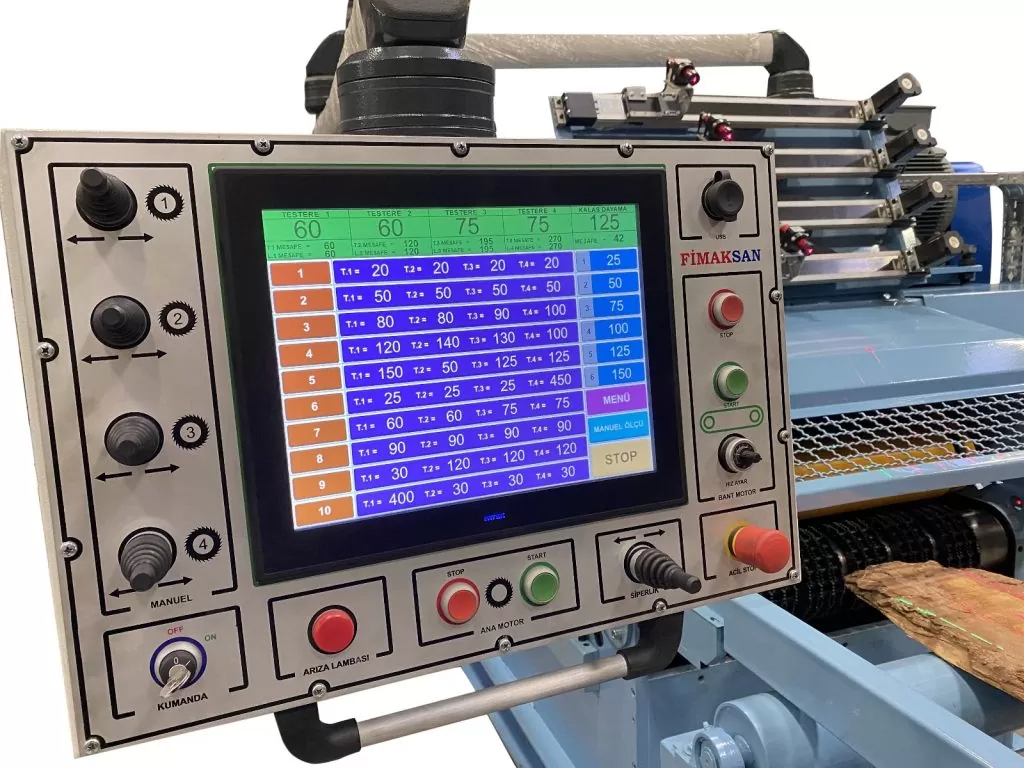

- PLC Controlled Touch Screen Panel
- 90kW / 2240 Rpm Main Motor
- Extra thick-walled steel structure
- Saw Spindle is made from hard steel
- Upper Hold Down Rollers are Pneumatic Powered for fast up & down
- The saw rotates in the same direction with the lumber feed, pulls the lumber towards saw & therefore eliminates kickbacks to the operator.
- Special Shaft drive Technology, which enables the saws to be pushed right from their centers with equal force, thus eliminates stress in positioning.

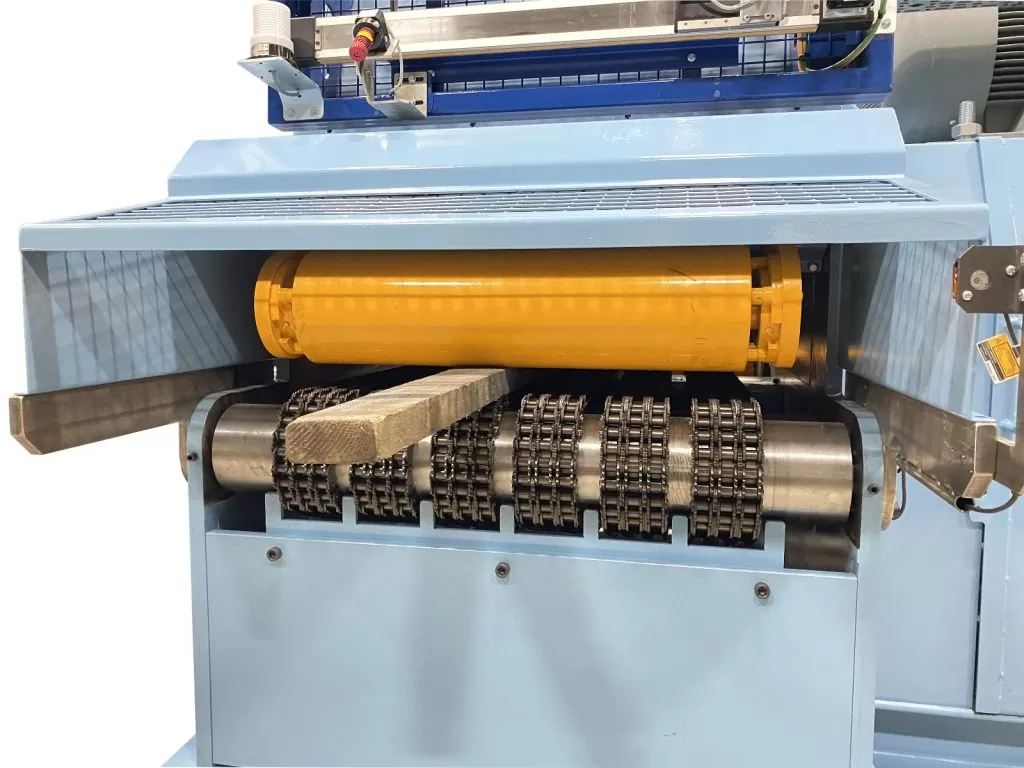

- Chained Feed Track System in infeed side & Outfeed Rollers on Outfeed side
- Automatic Lubrication
- Safety light with sensor that detects when timber is being cut in the saws. Restricts saw position change when cutting.
Technical data
| Data | Value |
|---|---|
| Cutting Height | 14 mm – 150 mm |
| Max. Cutting Width | 800 mm |
| Max. Working Width | 1000 mm |

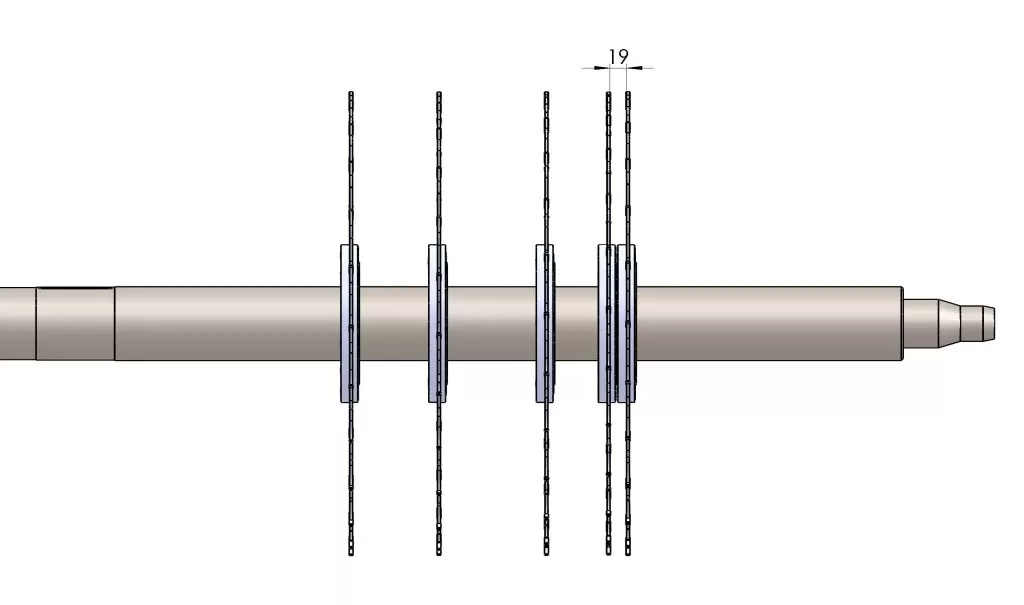

| Min. Distance Between Blades | 19 mm *It is an ideal minimum board thickness size for producing boards. |
| Circular Saw Diameter | 530 mm |
| Feed Speed | 10 m – 100 m |
| Main Motor | 75 kW (100 HP) / 2240 rpm |
| Weight | 6750 kg |
