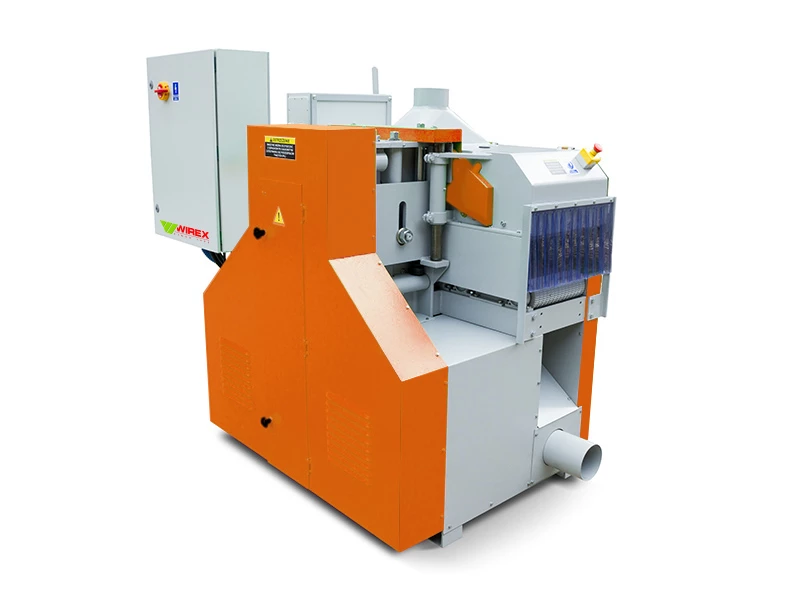

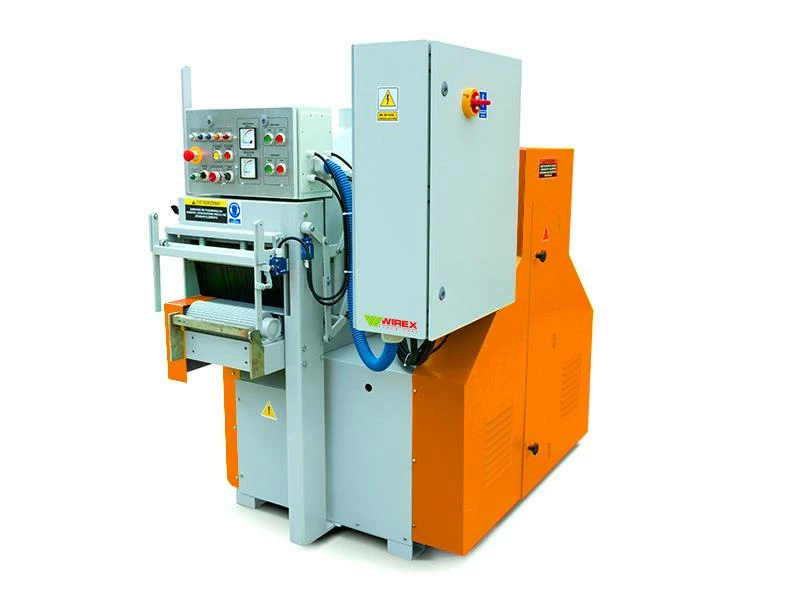

MULTISAW WD-200/240/M

The WD-200/240/M multirip saw is engineered for transforming cants into planks, strips, or squared timber, accommodating a broad thickness range of 30 to 200 mm. Its versatility makes it suitable for small, medium, or large woodworking operations, thanks to the availability of different main motor sizes.

Optional equipment

main motors 15 / 22 / 30/ 37 kW
wider infeed space for workpiece width up to 540 mm
mini chipper
infeed roller conveyor 2 m long (without drive)
output roller conveyor 2 m long (without drive)
baldes sleeves – possibility to prepare the blade coupling for quick production changeover
Note: decreased infeed workpiece size up to 185 mm
automatic feed speed adjustment releted to the load on the spindles

Technical data

Data	Value
Dimensions	length 1400 mm height 1540 mm width 1150 mm
Weight	2000 kg
Dimensions of infeed workpiece	height up to 30 ÷ 200 mm width up to 460 mm* (max working span 350 mm) length 600 – 3000 mm *may be increased up to 540 mm
Main motors power	top spindle 18,5 kW bottom spindle 18,5 kW
Power supply	400 V (3 phase)
Roller system of workpiece feeding	smooth, inverter controlled feed speed rate 2 ÷ 12 m/min. infeed rollers for workpiece feeding: bottom 6 rollers with drive top 2 rollers with drive and 2 rollers without drive
Shaft	diameter 60 mm possible level adjustment of top and bottom spindle depending on infeed workpiece height rotation speed 3500 rpm

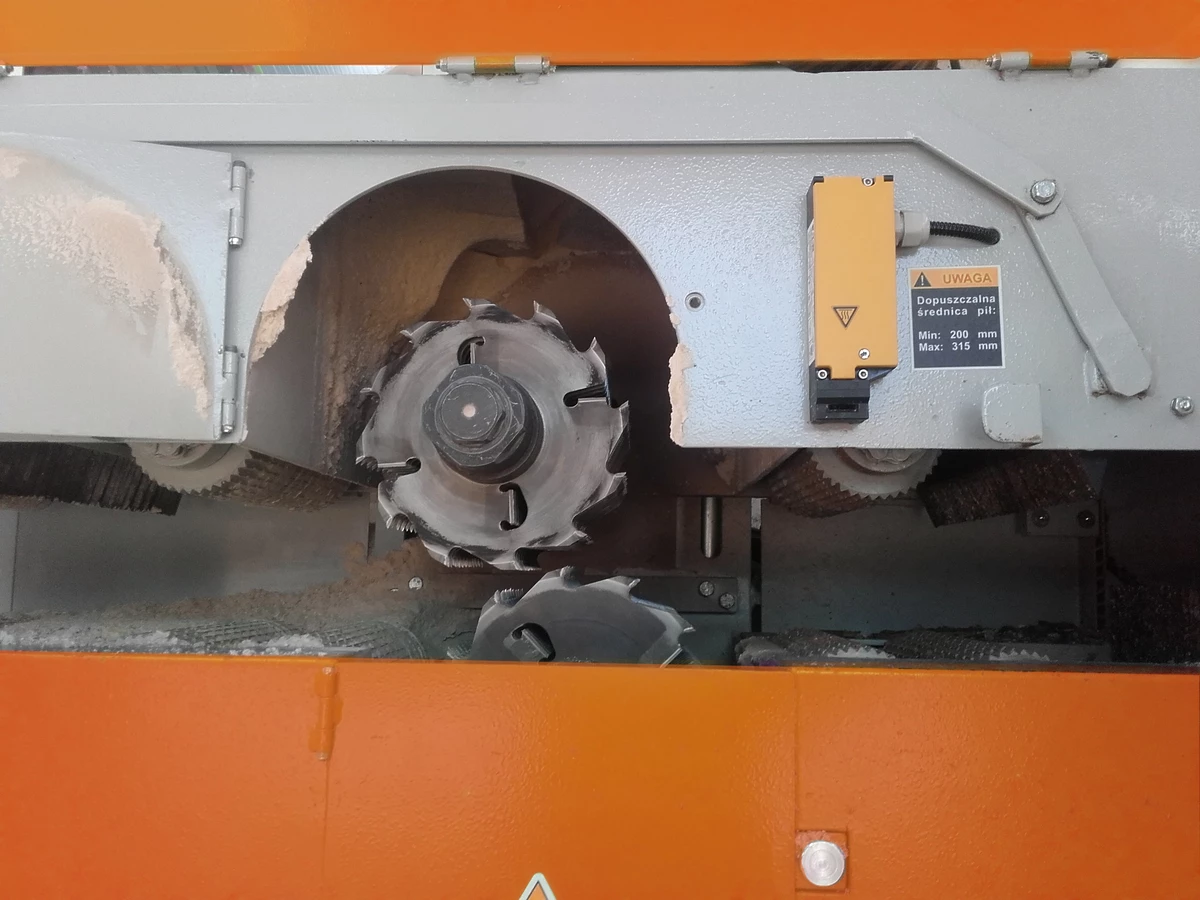

Circular blade	diameter 200 ÷ 315 mm max. blades quantity per spindle 12
Capacity per hour	up to 10 m³
