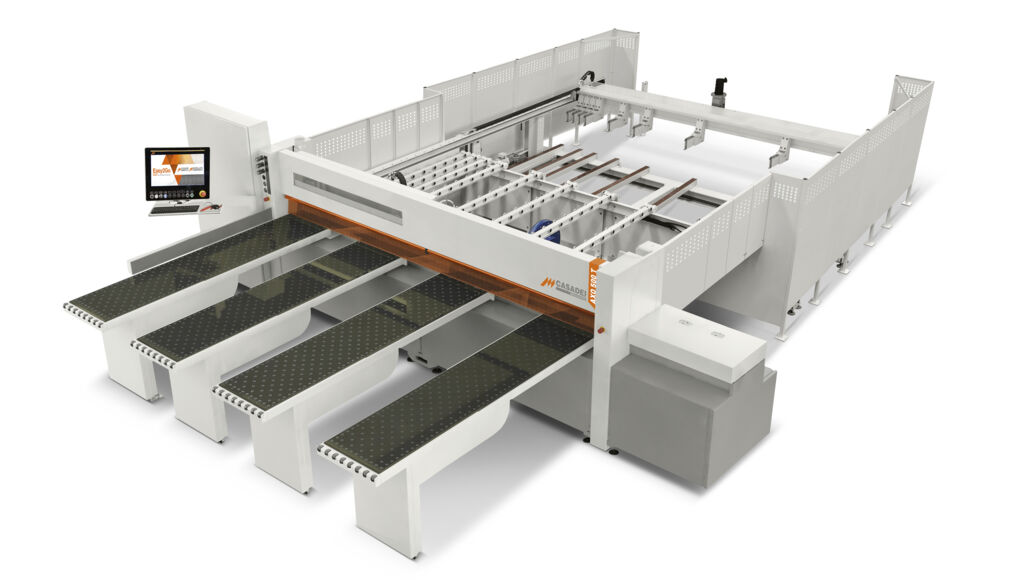

Tel: +44 (0) 197 825 4472AXO 400 T – AXO 500 T HD
Panel saws with lifting table
To handle high production rates, we offer Casadei’s two models of panel saws with a rear loading table: the AXO 400 T and the AXO 500 T HD. Designed for efficiency and precision, these saws are ideal for busy woodworking operations. The AXO 400 T features a robust construction and user-friendly controls, making it perfect for versatile cutting tasks. Meanwhile, the AXO 500 T HD provides enhanced power and advanced features for even more demanding applications. Both models ensure smooth material handling and quick setup, allowing businesses to maximize productivity while delivering high-quality results. With Casadei’s reliable technology, you can optimize your production processes with confidence.
Advantages
- The AXO 400 T significantly boosts production efficiency with its rear lifting table. Panels are loaded onto the table, enabling the machine to operate in a continuous cycle, automatically loading panel stacks according to the cutting program settings.
- The AXO 500 T HD delivers peak performance for extremely high production rates. Its robust construction, 130 mm blade projection, and high saw carriage and pusher speeds are key features that enable exceptional output. The machine accommodates panel stacks up to 1300 mm high on the table, facilitating efficient operation. To handle demanding, continuous production, it is equipped with prismatic guides for the saw carriage and automatic forced lubrication. With a saw carriage feed speed of 150 m/min and a pusher speed of 70 m/min, the AXO 500 T HD is designed for maximum efficiency and reliability.
| Data | Value |
|---|---|
| Ripping capacity | 3200/3800/4500 mm |
| Blade projection | 110 mm |
| Saw carriage feed speed | 0 ÷ 135 m/min |
| Max. pusher return speed | 0 ÷ 70 m/min |
| Main motor power 50 Hz (S6-40%) | 9 kW (12 Hp) |
| Scoring motor power 50 Hz (S6-40%) | 1,8 kW (2,5 Hp) |
| Max. dimensions of panels on rear loading table |
|
| Standard lift table capacity h = 600 mm | 4000 Kg |
| Data | Value |
|---|---|
| Ripping capacity | 3200/3800/4500 mm |
| Blade projection | 128 mm |
| Saw carriage feed speed | 0 ÷ 150 m/min |
| Max. pusher return speed | 0 ÷ 70 m/min |
| Main motor power at 50 Hz (S6-40%) | 15 kW (20 Hp) |
| Scoring motor power at 50 Hz (S6-40%) | 1,8 kW (2,5 Hp) |
| Max. dimensions of panels on rear loading table |
|
| Standard lift table capacity h = 600 mm | 6500 Kg |
