Tel: +44 (0) 197 825 4472FOX 3200
Clean cuts and boost in productivity in any workshop

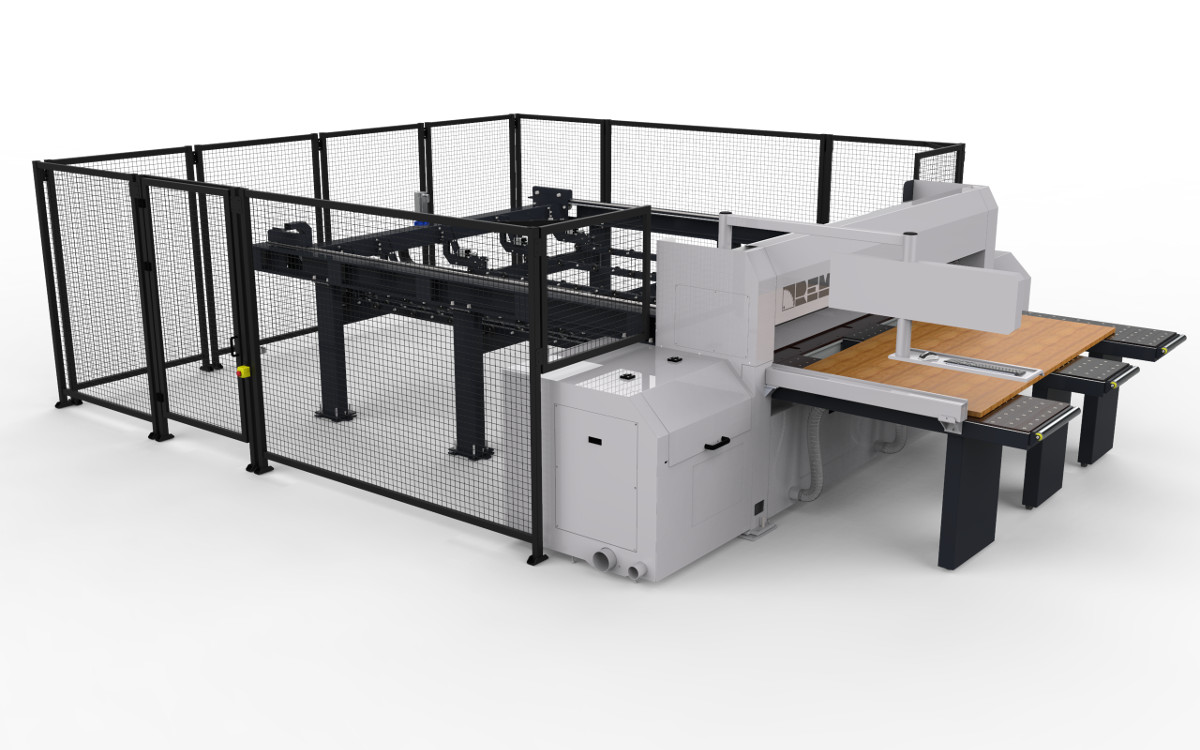

Introducing the latest addition to our lineup: the REMA Fox 3200 panel saw!
This cutting-edge machine is engineered for exceptional precision and efficiency, making it perfect for a wide range of woodworking applications. With its sturdy construction and advanced technology, the REMA Fox 3200 ensures clean, accurate cuts, whether you’re working with large panels or intricate designs. Its user-friendly interface and versatile features allow for seamless operation, boosting productivity in any workshop. Elevate your woodworking capabilities with the reliability and performance of the REMA Fox 3200!
| Data | Value |
|---|---|
| The main drive motor | 7,5 kW, Option: 11kW |
| Supply voltage | frequency f=50Hz, 3x400V in TN-SSwath width |
| Sawing length | 3200mm |
| Pneumatic pressure beam | ✔ |
| Beam clamping force pneumatically adjusted | ✔ |
| Cutting direction towards the angle fence (straight edge) | ✔ |
| Main shield | fi 400 |
| Saw blade projection | max 100 mm (max. cutting height 90 mm) |
| Undercut saw aggregate | 1,1 kW |
| The scoring wheel | fi 200mm, for postforming fi 300mm |
| Cutting at a right angle | ✔ |
| Feeding tables with “airbag” | ✔ |
| Feeding tables with adjustable airbags | 2 |
| Miter fence (optional) on the fixed table on the left side | ✔ |
| Material advance beam | traverse range 3200 mm |
| Number of material grippers | 7 |
| Gripper opening height | 100 mm |
| Beam speed | 25 m/min |
| The clamping force of the gripper locking system | adjustable |
| Extraction connection | 1x fi 125 mm, 3 x fi100 mm, 1 x fi80 mm |
| Weight | 3500kg |
| Program for optimizing the cutting of boards (the smallest waste) (option) | ✔ |
| Sending the designed forms to the machine via an internet cable (optional) | ✔ |
| Labeller (information on the label: order number, name, dimensions) (option) | ✔ |
| Remote support / machine diagnostics (option) | ✔ |
