TENONER
Data Values
Spindle fi 50×19
Maximum milling height 120 mm
160 tool
The width of the conveyor belt in the table 500 mm
Possibility to use undercutters when connecting “on the line”
PRESS FC-10HK6
Data Values
Press force 10T
Maximum width, height 140 mm, 40 mm
Working length 6 m (other on request)
Number of cycles on average 1 cycle / min
Capacity up to 2 cycles / min
The press is designed for joining along previously shaped and glued strips, boards, etc. The input material consists of elements made of sawn or planed wood, the faces of which are prepared for bonding, e.g. in the shape of finger joints.

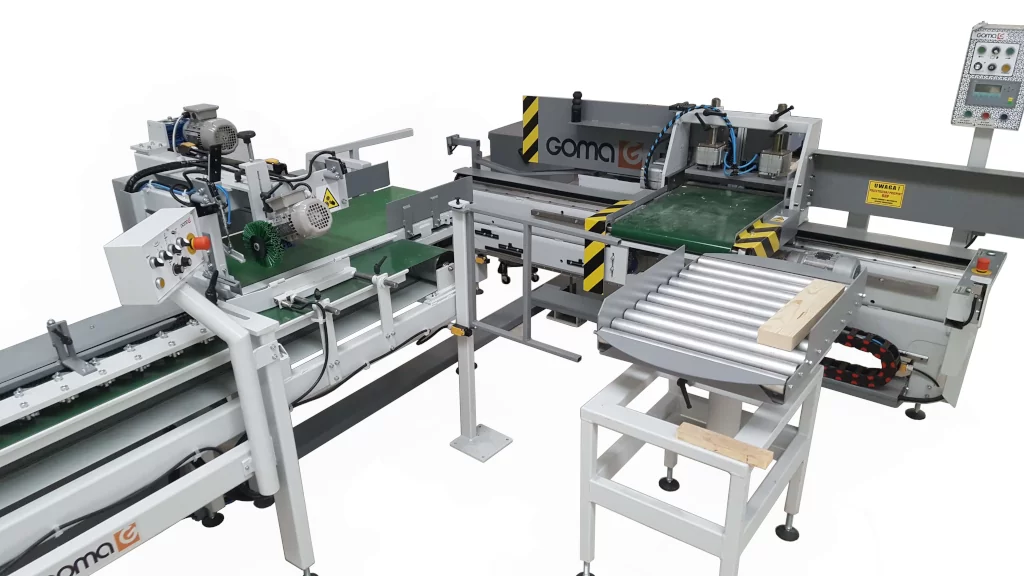

GOMA AFC-10 MLKT tenoning machine is designed for processing wood and wood-based materials. It is used for making tenons, forks, finger joints and other shapes at the ends of friezes, strips, planks, etc. Tenoners work on a wide package and are particularly suitable for making finger joints. The shortest pieces must be at least 200 mm long.

Press AFC-10HK is designed for joining strips, boards, etc. along previously shaped and glued strips. The input material is elements made of sawn or planed wood, the fronts of which are prepared for tacking, for example, in the shape of finger joints.

CHARACTERISTIC:

– Medium capacity production line,
– high-power working aggregates,
– high working feeds,
– accelerated handling movements translate into high performance. Depending on the assumed capacity, additional buffering conveyors are built into the string, which speed up the production process,
